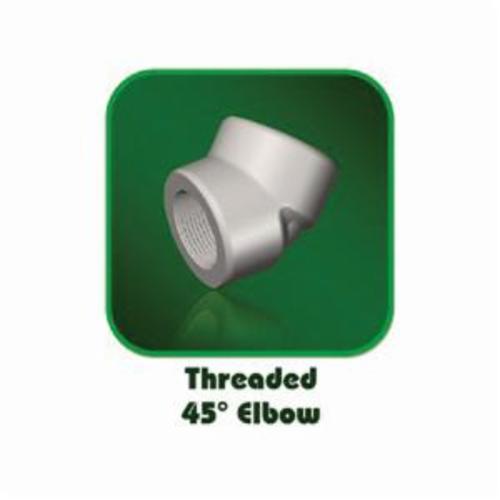

Penn Machine 12100313 Pipe 45 Deg Elbow 1-1/4 In NPT 2000 lb

Product Description

The Penn Machine 12100313 is a pipe elbow designed to connect pipes at a forty-five degree angle. It has a nominal size of one and one-quarter inches and features a national pipe thread (NPT) end style. This fitting is a forged product made from carbon steel and has a maximum pressure rating of two thousand pounds.

• Fitting type: 45 deg Elbow
• Material: Carbon Steel
• Maximum pressure: 2000 lb

Product Highlights

This elbow fitting is suitable for various plumbing and HVAC applications where a change in direction of piping is required.

Product Information

Standard Information

• Manufacturer: Penn Machine
• Part Number: 12100313

Technical Specifications

• Construction: Forged
• Dimensions: 2.188 in OD
• End Style: NPT
• Fitting Type: 45 deg Elbow
• Material: Carbon Steel
• Nominal Size: 1-1/4 in
• Schedule Rating: SCH 80/XH
• Standards/Approvals: ASME B16.11/B1.20.1-1983/ANSI Specified | ASTM A105 | UNS K03504 | PED Certified Canadian Registered in all provinces
