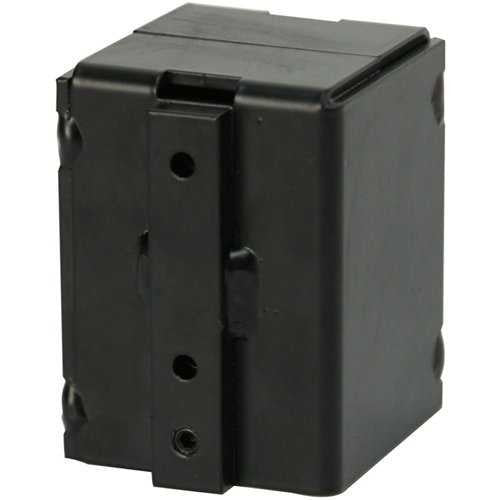

Peerless Industries MOD-ADF Pole Drilling Fixture

Product Description

The PEERLESS INDUSTRIES MOD-ADF is a pole drilling fixture designed to assist with accurate hole placement during the installation of ceiling mount pole assemblies. It serves as a layout and drilling guide, ensuring consistent and properly aligned holes in ceiling structures or mounting surfaces. This type of fixture is commonly used by AV installers and low-voltage technicians working with suspended display or projector mounting systems. The MOD-ADF simplifies the rough-in process and reduces the risk of misaligned anchor points on overhead installations.

The MOD-ADF is suited for use in commercial and residential AV installation environments where ceiling pole mounts are being deployed. It is categorized as a ceiling mount accessory and is sold as an individual unit. It is intended for use by integrators and installation crews during the mounting rough-in stage before final hardware is secured.

Key Features

• Provides accurate alignment guidance for pole drilling on ceiling mount installations
• Designed for use with ceiling mount pole systems as a layout aid
• Sold as a single unit for individual job use
• Reduces measurement error during overhead anchor point layout

Compatibility

Designed as an accessory for ceiling mount pole systems. Specific compatible pole assemblies or system families were not provided in the available product data. Verify fitment with PEERLESS INDUSTRIES documentation before ordering.

Installation Notes

Installation should be performed by a qualified AV integrator or low-voltage technician familiar with overhead mounting systems. Confirm that the ceiling structure can support the intended load before drilling. Power down any electrical systems in the work area as required by local codes before beginning overhead work. Use appropriate drill bits and fasteners rated for the ceiling material type.
