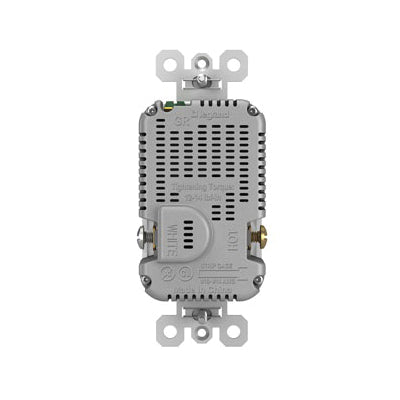

Pass & Seymour TR20USBCC6W Ultra-Fast USB Charging Receptacle 20 A 125 VAC

Product Description

The Pass & Seymour TR20USBCC6W is designed for fast and convenient charging of devices. This receptacle includes two Type-C USB ports, allowing for charging at speeds up to 40% faster than standard USB chargers. It features tamper-resistant outlets that meet NEC standards and provides a total charging capacity of 6 A shared between both ports. The design includes black invisi-shutters for improved safety, helping to prevent foreign object insertion. The external brass back wire pressure plate simplifies installation with back and side wire terminals.

• Fast charging up to 6 A
• Two Type-C USB ports for simultaneous charging
• Tamper-resistant safety design

Product Highlights

Designed for commercial use, this receptacle is built to last and handle demanding applications.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Legrand

Technical Specifications

• Electrical Rating: 20 A, 125 VAC
• USB Rating: 6 A
• USB Quantity: 2
• USB Type: Type-C
• Wire Size: 14 to 10 AWG
• Connection: Screw
• Environmental Conditions: -40 to 60 deg C Operating Temperature
• Size: 2.69 in H x 1.74 in W x 1.67 in D
• Material: Nylon/Polycarbonate
• Wiring Method: Back/Side Wire
• Grade: Commercial/Specification
