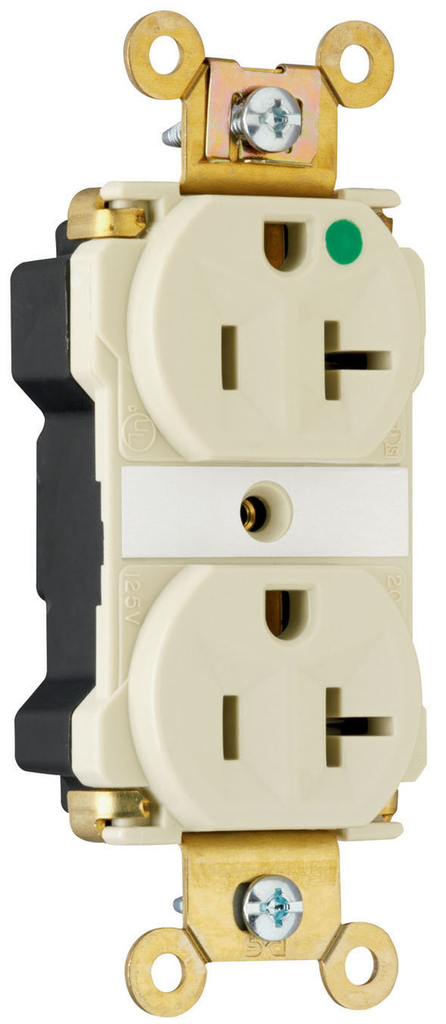

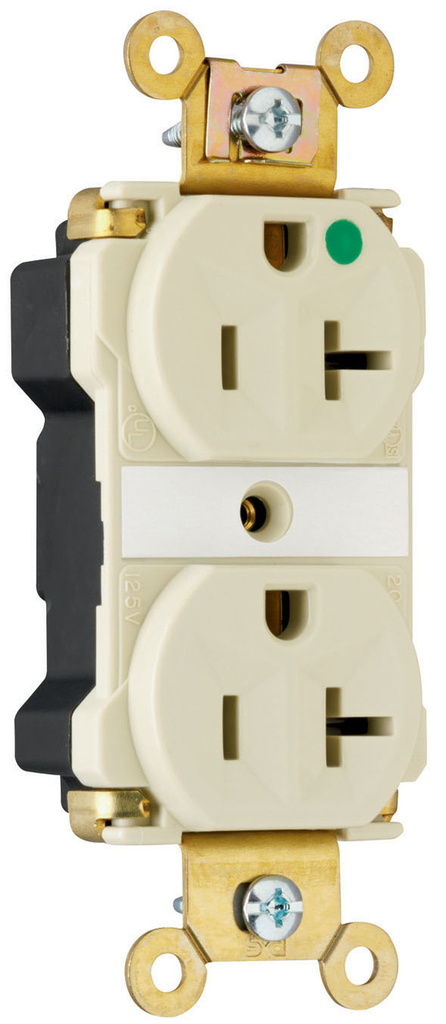

Pass & Seymour PT8300I PlugTail Extra Heavy-Duty Hospital Grade Duplex Receptacle 20A 125V - Ivory

Product Description

The Pass & Seymour PT8300I is a PlugTail Extra Heavy-Duty Duplex Receptacle designed for commercial and hospital applications. It operates at 125 VAC and provides 20 A, featuring two poles and three wires. This model is rated for NEMA 5-20R and is made from thermoplastic to withstand a temperature range of negative forty to sixty degrees Celsius.

• Exclusive patented circuit label feature for easy identification
• Durable plated steel wrap strap design
• UL 94-V2 flammability rating

Product Highlights

This receptacle is ideal for heavy-duty use in hospitals and commercial settings. Its robust design ensures lasting performance and safety.

Product Information

Standard Information

• Manufacturer: Legrand
• NEMA Rating: NEMA 5-20R

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Material: Thermoplastic
• Dimensions: 3.3 in H x 1.625 in W x 0.866 in D
• Temperature Rating: -40 to 60 deg C
• Duty Rating: Extra Heavy Duty
