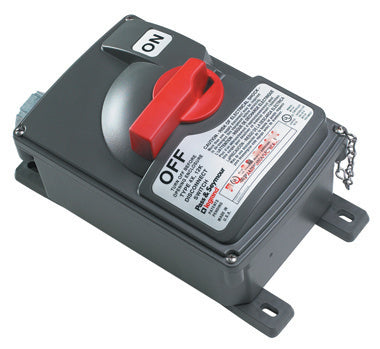

Pass & Seymour PS60-SS Non-Fusible Safety Switch 60A

Product Description

The Pass & Seymour PS60-SS is a non-fusible safety switch operating at 600 VAC and 60 Amps. This safety switch is UL Listed as Suitable as Motor Disconnect per NEC Article 430.109(A)(6). It features extra-tough components and an impact-resistant Valox NEMA 4X enclosure, ensuring safe operation in harsh conditions.

• Compact design fits in most I-beams for mounting versatility and easy access.
• Nonconductive, watertight, corrosion-, heat-, and impact-resistant thermoplastic enclosure ensures NEMA 4X and 12 ratings.
• Corrosion-resistant, stainless steel captive screws speed installation and minimize lost parts.

Product Highlights

This safety switch is designed for industrial applications, offering durability and resistance to corrosion, water, and impact.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PS60-SS
• Country of Origin: United States

Technical Specifications

• Type: Safety Switch
• Material: Thermoplastic
• Finish: Matte
• Application Sector: Industrial
• Product Line: Pass & Seymour
• Country Of Origin: United States
• Features: Corrosion Resistant, Durable, Watertight
• Standard: UL 498
• UPC Number: 785007150100
• Product Depth US: 6.31 in
• Product Height US: 12.38 in
• Product Width US: 9.13 in
• cULus ListingNumber: 31169
• cULus Listed: Yes
• Amperage: 60 A
• Maximum Horsepower Rating: 50 HP @ 30b8Y 347/600 VAC
• Wiring Location: Bottom, Top
• Connection: Hardwired
• Enclosure Type: IP67/IP69
• Horsepower Rating: 10 HP @ 208 VAC, 10 HP @ 240 VAC, 15 HP @ 277 VAC, 20 HP @ 30b8 240 VAC, 20 HP @ 30b8 480 VAC, 20 HP @ 30b8 600 VAC, 20 HP @ 30b8Y 120/208 VAC, 20 HP @ 480 VAC, 3 HP @ 120 VAC, 40 HP @ 30b8Y 277/480 VAC, 50 HP @ 30b8Y 347/600 VAC
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 to 600 V
• Actuator Type: Switch Handle
• Number of Poles: 3
• Number of Wires: 4
• Phase: 3
• Temperature Rating: -50 to 60 deg C
