Pass & Seymour PS20AC1L Extra Heavy Duty Lock Switch 120/277 VAC 20 Amp Replacement

Product Description

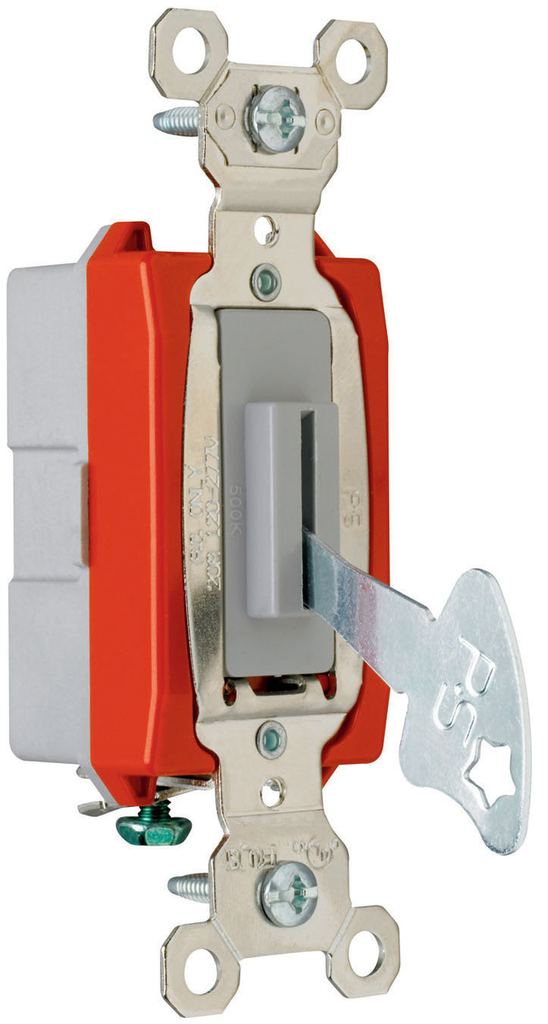

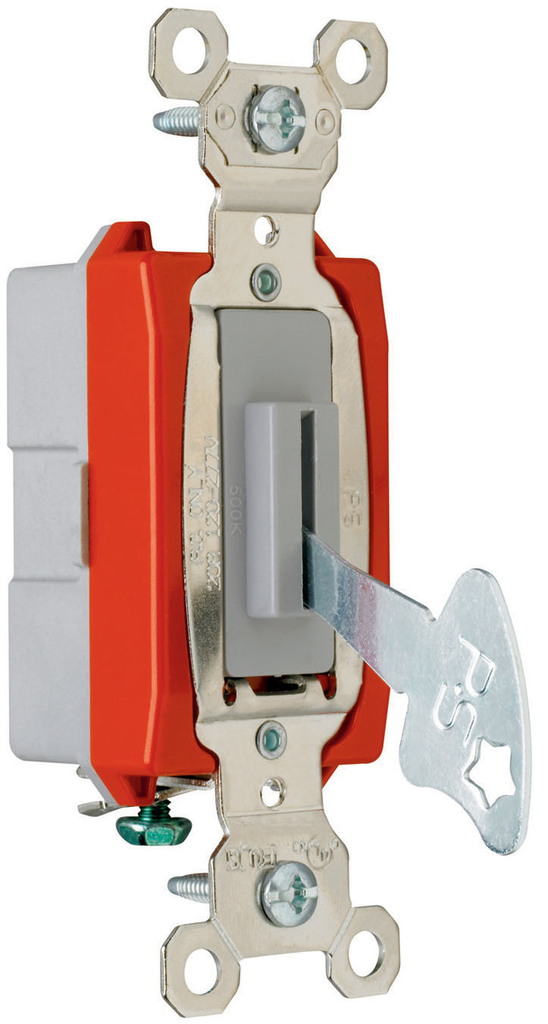

The Pass & Seymour PS20AC1L is an extra heavy-duty lock switch. It operates at 120/277 VAC and supports a maximum current of 20 Amperes. This switch is designed for industrial applications requiring a reliable locking mechanism to restrict use. The single pole configuration showcases a toggle actuation, allowing for simple and effective operation.

• Extra heavy-duty construction for high-use environments.
• Compatible with #14 to #10 AWG conductors.
• Removable key design for ON and OFF positions.

Product Highlights

This switch features back and side wiring capabilities, making it versatile for various installations.

Product Information

Standard Information

• Brand: Pass & Seymour
• MPN: PS20AC1L

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Power Rating: 2 hp
• Dimensions: 3.281 inches H x 1.32 inches W x 1.073 inches D
• Material: Nylon
• Environmental Conditions: -40 to 115 degrees C
• Contact Configuration: SPST
• Number of Poles: 1
