Pass & Seymour PS20-MBR male cam type plug 400A 600V

Product Description

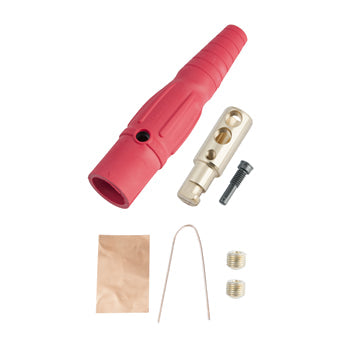

The Pass & Seymour PS20-MBR is a male cam device plug with 400A 600V capacity. It features a thermoplastic elastomer housing for impact and chemical resistance. The non-conductive retaining screw ensures no contact with live parts and provides stability. Heavy-duty brass contacts offer superior conductivity, and heavy-duty hex set screws allow greater termination torque.

• Thermoplastic elastomer housing for outstanding impact and chemical resistance
• Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
• Heavy duty brass male and female contacts provide a superior and consistent means of conductivity

Product Highlights

Male cam device plug with 400A 600V capacity, thermoplastic elastomer housing, and heavy-duty brass contacts.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PS20-MBR
• Country of Origin: Mexico

Technical Specifications

• Housing Material: Thermoplastic Elastomer
• NEMA Rating: NEMA 3R/4
• Temperature Rating: -40 to 75 deg C
• Voltage Rating: 600 VAC
• Standard & Approvals: UL Listed, cCSAus, CSA Certified
• Amperage Rating: 400 A
• Application: Movie/Entertainment Production, Stage Production, Fair/Carnival, Theme Park, Concert Venue, Arenas/Convention Center, Mining and Construction, Shipping and Airport
• Wire Size: 2 to 2/0 AWG
• Type: Connector
• Series: 16 Series
• Contact Material: Brass
• Applications: Commercial,Industrial
• Conductor Size: 2-2/0 AWG
• Cord Type: Individual conductor, Type SC, SCE, SCT or W, 75C, copper wire only
• Indoor Outdoor: Indoor
• Material: Elastomer
• NEMA Size: 3R,4
• Number of Poles: 1 Pole
• Voltage: 600 Volt
• Brand: Legrand
• Sub Brand: Pass & Seymour
• Product UPC: 78500730802
• UNSPSC: 39121403
• Length: 6-7/8 Inch
