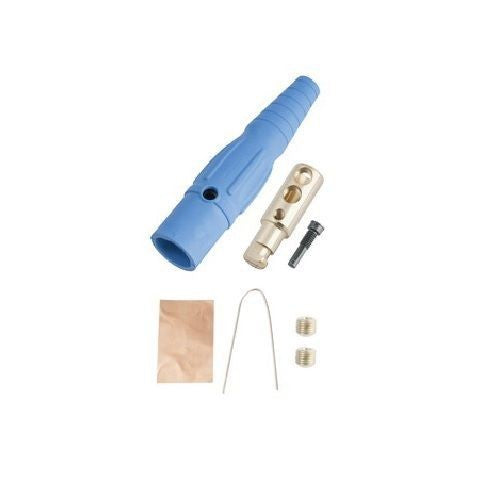

Pass & Seymour PS20-MBG 400A 600V Male Cam Type Plug

Product Description

The Pass & Seymour PS20-MBG is a 16 Series 1-Pole Cam-Type In-Line Connector, designed for 600 VAC and 400 A. It accommodates 2 to 2/0 AWG wire and features a male connection with a NEMA 3R/4 rating. Ideal for movie, stage production, mining, and construction applications.

• Thermoplastic elastomer housing for outstanding impact and chemical resistance
• Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
• Heavy duty brass male and female contacts provide a superior and consistent means of conductivity

Product Highlights

The PS20-MBG offers robust construction and reliable connectivity for demanding environments.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PS20-MBG

Technical Specifications

• Housing Material: Thermoplastic Elastomer
• NEMA Rating: NEMA 3R/4
• Series: 16 Series
• Specifications: 1 Pole
• Temperature Rating: -40 to 75 deg C
• Type: CAM Type Male
• Voltage Rating: 600 VAC
• Wire Size: 2 to 2/0 AWG
• Application: Movie/Entertainment Production, Stage Production, Fair/Carnival, Theme Park, Concert Venue, Arenas/Convention Center, Mining and Construction, Shipping and Airport
• Standard & Approvals: UL Listed, cCSAus, CSA Certified
• Amperage Rating: 400 A
• Contact Material: Brass
