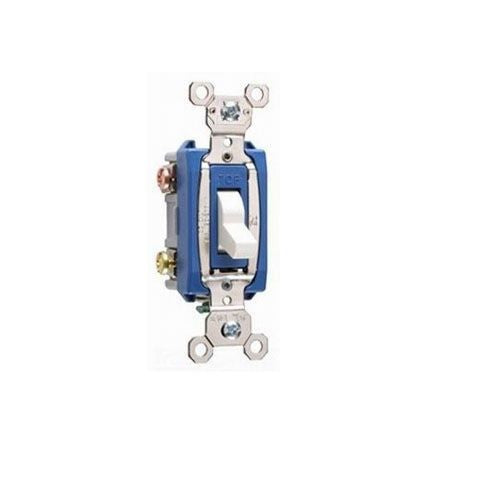

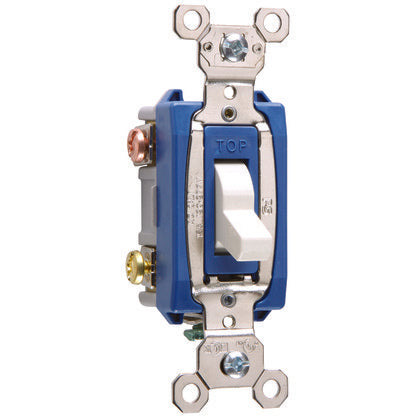

Pass & Seymour PS15AC3-W industrial extra heavy duty specification grade switch 15 A

Product Description

The Pass & Seymour PS15AC3-W is an industrial extra heavy-duty specification grade switch. The one-piece toggle is molded from chemical, impact, and heat-resistant thermoplastic. Features an impact and chemical-resistant cover and a glass-reinforced, chemical-resistant thermoplastic back body for durability and strength. Designed for demanding applications, these switches virtually eliminate contact bounce and arcing.

• One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
• Impact- and chemical-resistant cover.
• Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.

Product Highlights

This heavy-duty switch is ideal for industrial settings, offering superior corrosion resistance and reliable performance.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PS15AC3-W
• Country of Origin: Mexico

Technical Specifications

• Type: Switch
• Material: Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Features: Chemical Resistant
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Toggle
• Standard: UL 20, FEDSPEC
• UPC Number: 785007196580
• Amperage: 15 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 15 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: 3-Way
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 VAC, 277 VAC
• Mounting: Wall
• Operating Cycles: 50000
• Actuator: Cam
• Amperage Rating: 15 A
• Catalog ID: P-SPS15AC3-W
• Environmental Conditions: -40 to 115 deg C
• Power Rating: 1/2 hp/2 hp
• Terminal Type: Screw
• Application: For industrial uses such as health care, education and institutional
• Standard & Approvals: CSA C22.2 No. 111 Certified, cULus File No. LR17446 Listed, Federal Specification WS896, NEMA WD-1, WD-6, RoHS Complaint, UL20 File No. E140597 Listed
• Duty Rating: Extra Heavy Duty
• Grade: Industrial
• Brand: Pass & Seymour
• Sub Brand: Pass & Seymour
• 12-Digit UPC: 785007196580
• Product UPC: 78500719658
• UNSPSC: 39121507
• Depth: 1.073 Inch
• Height: 3.281 Inch
• Width: 1.32 in
• Certifications: CULUS,FEDSPEC
• Contact Rating: 120 V
• Rated Voltage: 120V
• AWG Range: 14 - 10 AWG
• ECCN: EAR99
• Color Family: White
• Poles: 3
• Volts AC: 120, 277
• Applications: Industrial
