LEGRAND Pass & Seymour PS15AC3-L Industrial Extra Heavy Duty Specification Grade Lock Switch 15A
LEGRAND Pass & Seymour PS15AC3-L Industrial Extra Heavy Duty Specification Grade Lock Switch 15A

Pass & Seymour PS15AC3-L Industrial Extra Heavy Duty Specification Grade Lock Switch 15A

LEGRAND
Brand: LEGRAND
SKU: PS15AC3-L
Availability: In Stock

Ships same day if ordered by 12 pm
$57.20
$57.20
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

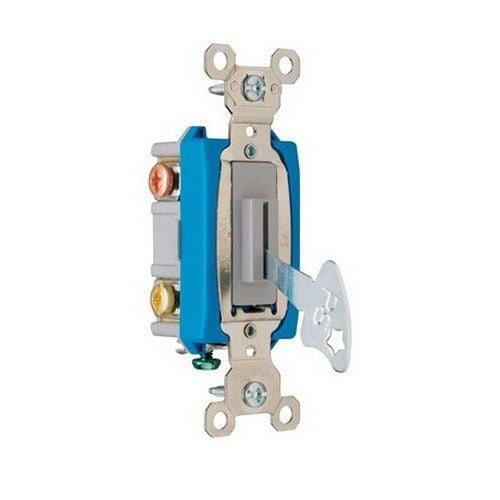

The Pass & Seymour PS15AC3-L is an industrial extra heavy-duty specification grade lock switch. This 3-way lock switch features back and side wiring and is rated for 15A at 120/277V. It provides an easy, economical solution for restricting use with a sturdy, single-design key removable in either the ON or OFF position.

  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.

Product Highlights

This Pass & Seymour lock switch is a dependable choice for any high-use application. Suitable for commercial and industrial applications.

Product Information

Standard Information

  • Brand: Pass & Seymour
  • Manufacturer Part Number: PS15AC3-L
  • Country of Origin: Mexico
Technical Specifications
Color
Gray
Type
3-Way Extra Heavy Duty
Material
Thermoplastic
Finish
Matte
Application Sector
Commercial, Industrial
Product Line
Pass & Seymour
Country Of Origin
Mexico
Chemical Resistant
Yes
Wall Plate Included
No
Number of Switches
1
Switch Type
Toggle
Standard
UL 20, FEDSPEC
UPC Number
785007195606
Product Depth US
1.073 in
Product Height US
3.281 in
Product Width US
1.32 in
cULus ListingNumber
140597
cULus Listed
Yes
Amperage
15 A
Connection Location
Back and Side
Requires Neutral Wire
No
Wire Connection Type
Screw Terminals
Indoor/Outdoor
Indoor
Load Rating
15 A @ 120/277 VAC
Load Type
CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
3-Way
Throw Type
Double Throw
Terminal Accommodation
#14 AWG - #10 AWG
Voltage
120 VAC, 277 VAC
Mounting
Wall
Actuator
Toggle
Amperage Rating
15 A
Catalog ID
P-SPS15AC3-L
Connection
Screw
Contact Configuration
SPST
Dimensions
3.281 in H x 1.32 in W x 1.073 in D
Environmental Conditions
-40 to 115 deg C
Voltage Rating
120/277 VAC
Application
Indoor, Floor Polishers and Sanders
Standard & Approvals
CSA Certified, NEMA WD-1, WD-6, RoHS Complaint, UL Listed
Brand
Pass & Seymour
Contact Rating
15 A at 120/277 V AC, 15 A at 120/277 VAC
Country of Origin
MX
Manufacturer Name
Legrand
