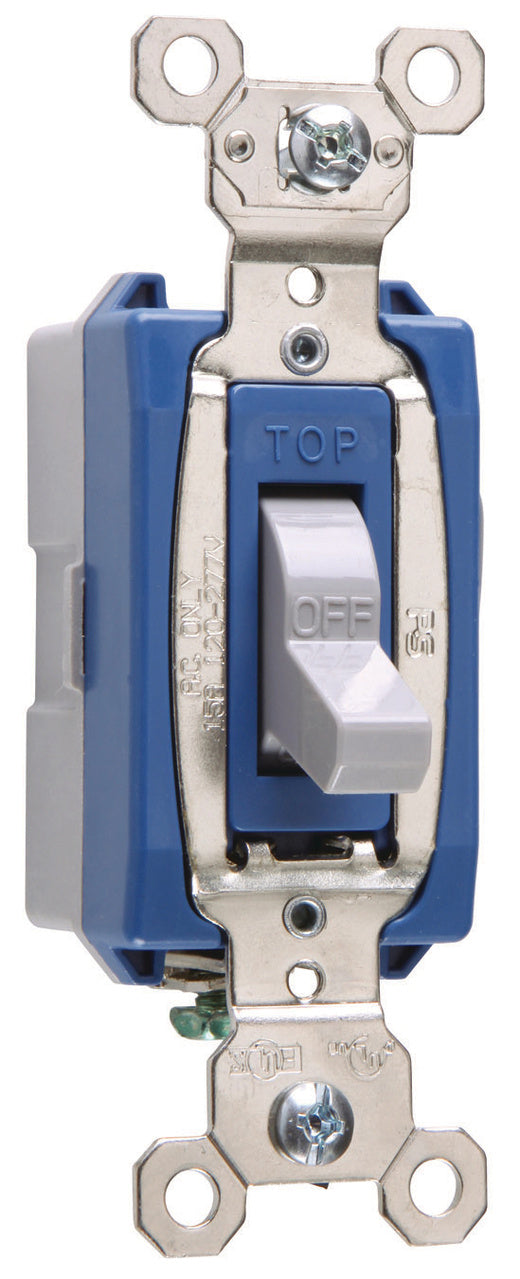

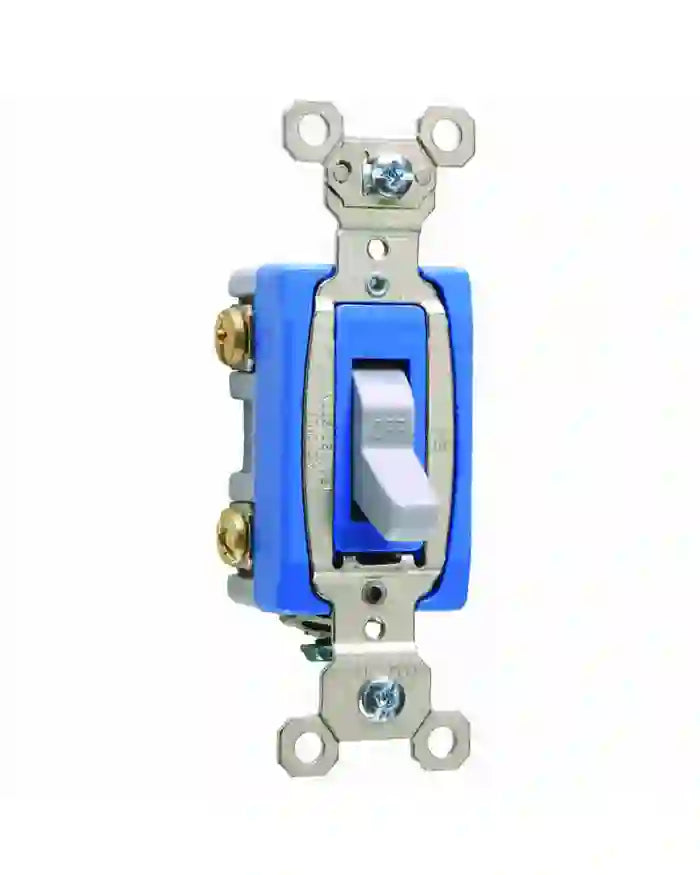

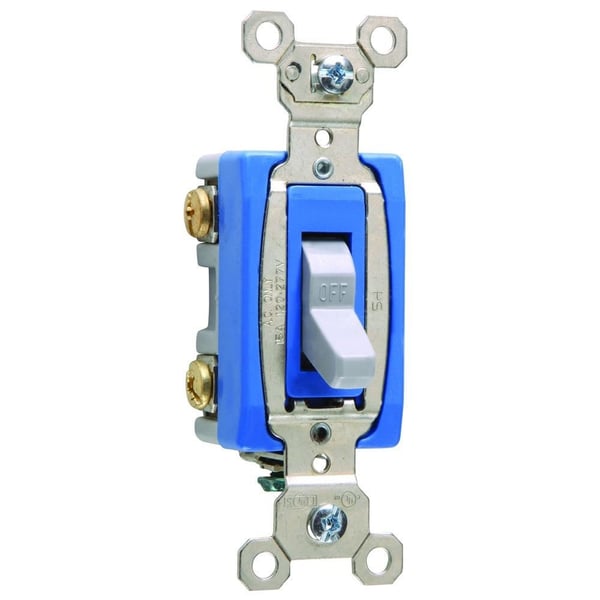

Pass & Seymour PS15AC3-GRY 3-way Toggle Switch 15A 120/277V

Product Description

The Pass & Seymour PS15AC3-GRY is a 3-way toggle switch designed for demanding applications. Its thermoplastic construction offers resistance to chemicals, impacts, and heat. The switch features oversized silver-alloy contacts for enhanced longevity and heat dissipation. It also includes back and side wiring options for versatile installation.

• Molded from chemical, impact, and heat-resistant thermoplastic
• Features oversized silver-alloy contacts for long life and better heat dissipation
• Offers side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire

Product Highlights

Durable toggle switch with robust thermoplastic build, ideal for industrial and commercial settings.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: PS15AC3-GRY
• Country of Origin: Mexico

Technical Specifications

• Color: Gray
• Type: Switch
• Material: Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Chemical Resistant: Yes
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Toggle
• Standard: UL 20, FEDSPEC
• UPC Number: 785007196559
• Product Depth US: 1.073 in
• Product Height US: 3.281 in
• Product Width US: 1.32 in
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 15 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 15 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: 3-Way
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120 VAC, 277 VAC
• Applications: Industrial Applications
• Contact Rating: 120 V
• Duty Rating: Extra Heavy Duty
• Grade: Industrial
• Sub Brand: Pass & Seymour
• 12-Digit UPC: 785007196559
• GTiN: 00785007196559
• Product UPC: 78500719655
• UNSPSC: 39121507
• Depth: 1.073 Inch
• Height: 3.281 Inch
• Width: 1.32 in
• Certifications: CULUS,FEDSPEC
• Mounting: Wall
• Operating Cycles: 50000
• Order Interval: 1
• Amperage Rating: 15 A
• Catalog ID: P-SPS15AC3-GRY
• Terminal Type: Screw
• Voltage Rating: 120/277 VAC
• Standard & Approvals: CSA C22.2 No. 111 Certified, cULus File No. LR17446 Listed, Federal Specification WS896, NEMA WD-1, WD-6, RoHS Complaint, UL20 File No. E140597 Listed
• Application: For industrial uses such as health care, education and institutional
• Power Rating: 1/2 hp/2 hp
• Environmental Conditions: -40 to 115 deg C
• Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
• Actuator: Cam
