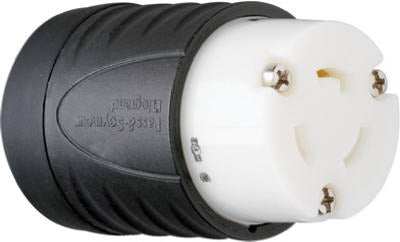

Pass Seymour L620CCCV3 Locking Connector 20A 250V

Product Description

The PASS SEYMOUR L620CCCV3 is a locking connector rated for 20 amps and 250 volts, built to NEMA L6-20R configuration. It features a 2-pole, 3-wire grounding design and is constructed with high-strength brass alloy blades engineered to resist heat rise under sustained load. The device carries UL listing, CSA certification, and meets Federal Specification requirements. Amperage, voltage, and NEMA rating are hot-stamped directly on the body for fast field identification. Color-coded wiring terminals are back-out style, allowing quicker termination during installation. This connector is intended for use by licensed electricians in industrial and commercial power distribution applications.

This locking connector is suited for 250-volt branch circuit applications requiring a secure, twist-lock connection that resists accidental disconnection. Typical installations include temporary power setups, portable equipment feeds, generator connections, and hard-wired equipment in commercial and light industrial environments. The NEMA L6-20R rating makes it compatible with matching L6-20 locking plugs. The matching plug reference is True Value 602-083. Package quantity is 3 units per box.

Key Features

• NEMA L6-20R configuration — 20A, 250V, 2-pole, 3-wire grounding
• High-strength brass alloy blades resist heat rise under load
• Color-coded, back-out wiring terminals for faster field termination
• Amperage, voltage, and NEMA rating hot-stamped on device for clear identification
• UL listed, CSA certified, and meets Federal Specification requirements
• Sold in a box of 3 units

Compatibility

Designed for use with NEMA L6-20 locking plugs. Matching plug reference: True Value 602-083.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before making any wiring connections. Terminals are back-out style — do not overtighten or force terminal screws beyond their rated engagement. Confirm that branch circuit ampacity and conductor gauge match the 20A, 250V rating of this connector before placing in service.
