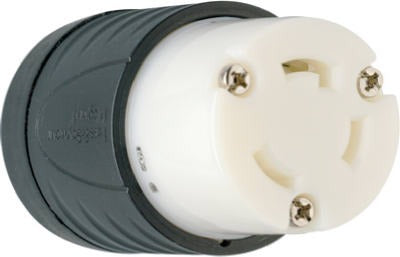

Pass Seymour L530CCCV3 Locking Connector 30A 125V

Product Description

The PASS SEYMOUR L530CCCV3 is a NEMA L5-30R locking connector rated for 30 amps at 125 volts. It features a 2-pole, 3-wire grounding configuration designed for secure, twist-lock electrical connections in demanding service environments. High-strength brass alloy blades resist heat rise under sustained load. The amperage, voltage, and NEMA rating are hot-stamped directly on the device body for fast field identification. Wiring terminals are color-coded and back-out ready, reducing termination time during installation. Licensed electricians install this connector in commercial, industrial, and heavy-duty residential applications where a positive locking connection is required.

The L530CCCV3 is suited for generator hookups, portable equipment feeds, temporary power distribution, and other applications requiring a 30-amp 125-volt locking-style connector. The NEMA L5-30R configuration matches standard locking receptacles and plugs in that same family. This package contains 3 connectors per box. The matching locking plug is referenced by supplier as True Value 765-696. Typical installations include construction sites, event power distribution, and industrial machinery power drops where accidental disconnection must be prevented.

Key Features

• NEMA L5-30R locking connector rated 30A at 125 volts
• 2-pole, 3-wire grounding design for secure twist-lock connection
• High-strength brass alloy blades resist heat rise under load
• Color-coded, back-out wiring terminals for faster, error-reduced termination
• Amperage, voltage, and NEMA rating hot-stamped on device body for clear field identification
• UL listed, CSA certified, and meets Federal Specification requirements

Compatibility

Designed for use with NEMA L5-30R locking receptacles and plugs. The matching locking plug is referenced by the supplier as True Value 765-696. Suitable for 30-amp 125-volt locking-connector applications in commercial, industrial, and portable equipment circuits.

Installation Notes

Installation must be performed by a qualified, licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before terminating wiring. Verify conductor gauge is rated for 30 amps before making connections. Do not exceed the 30A 125V rating of this connector.
