Pass Seymour L1530PCC Locking Plug 30A 250V Nema L15-30P

Product Description

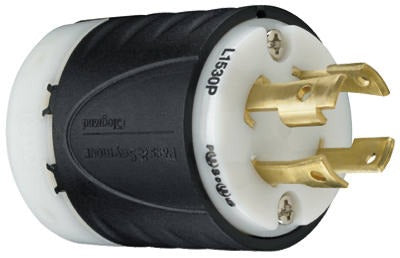

The PASS SEYMOUR L1530PCC is a NEMA L15-30P locking plug rated for 30 amps and 250 volts in a 3-pole, 4-wire grounding configuration. It features 4 physical prongs and is built with high-strength brass alloy blades that resist heat rise under sustained load. The black and white housing is designed for industrial and commercial electrical installations where a secure, twist-lock connection is required. Licensed electricians install this plug on portable cord assemblies, generators, and power distribution equipment where accidental disconnection under load must be prevented. The amperage, voltage, and NEMA rating are hot stamped directly on the device for fast field identification.

This plug is suited for commercial and light industrial applications where NEMA L15-30P locking connections are required. Typical install scenarios include generator output leads, motor-driven equipment, and portable power distribution panels operating at 250 volts, 3-phase. Wiring terminals are color coded and come back-out ready to wire, reducing termination time in the field. It ships in a box quantity of 10 units, making it practical for contractor stocking. The matching connector carries True Value reference 827-474 for procurement pairing.

Key Features

• NEMA L15-30P twist-lock design prevents accidental disconnection under load
• High-strength brass alloy blades resist heat rise at rated current
• Color-coded, back-out-ready wiring terminals speed field termination
• Amperage, voltage, and NEMA rating hot stamped on device for clear identification
• 3-pole, 4-wire grounding configuration with 4 physical prongs
• UL listed, CSA certified, and meets Federal Specification requirements

Compatibility

Designed for use in NEMA L15-30P locking plug applications. Matching connector is True Value reference 827-474.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify absence of voltage before terminating any wiring. Terminals are back-out ready and color coded to assist with proper conductor seating. Ensure the cord strain relief is properly secured before returning the circuit to service.
