Pass & Seymour IG4710 Turnlok Single Receptacle 15A 125V (4.1 in)

Brand: PASS & SEYMOUR
SKU: IG4710
Availability: Out Of Stock
$112.22
$112.22
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

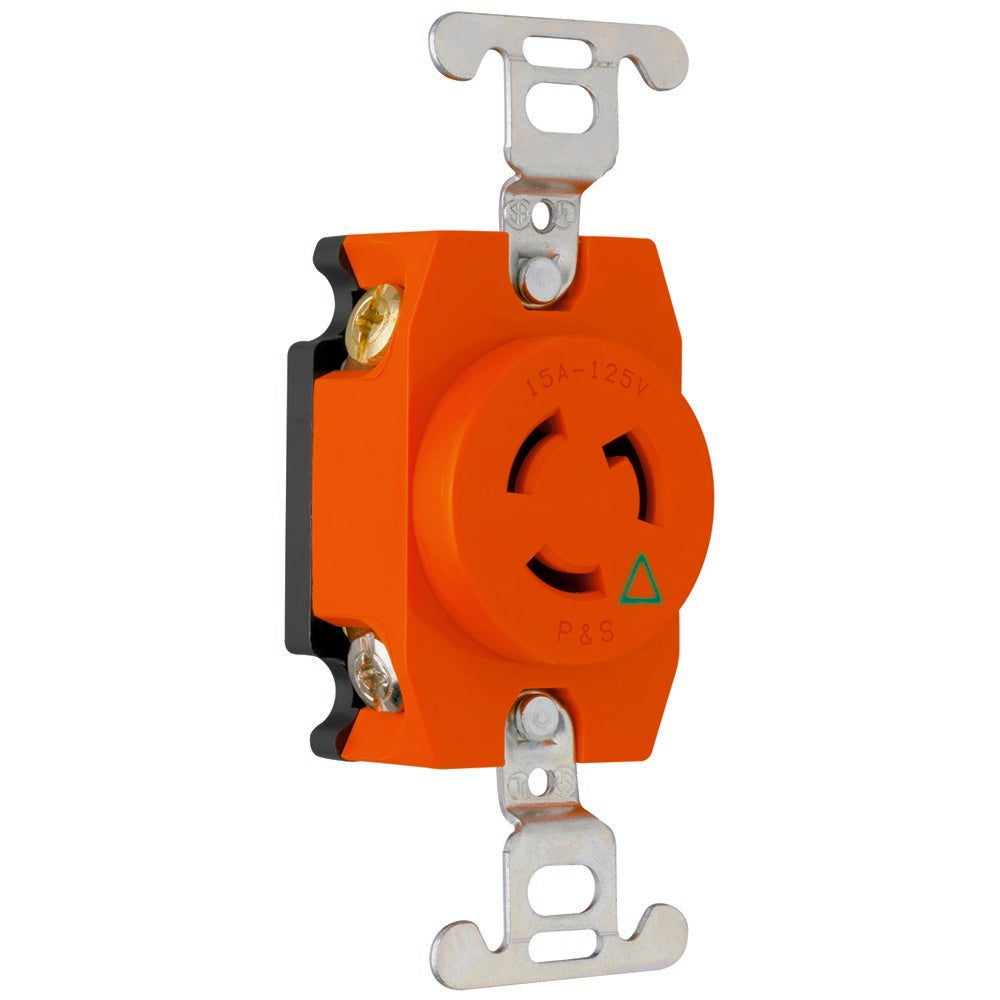

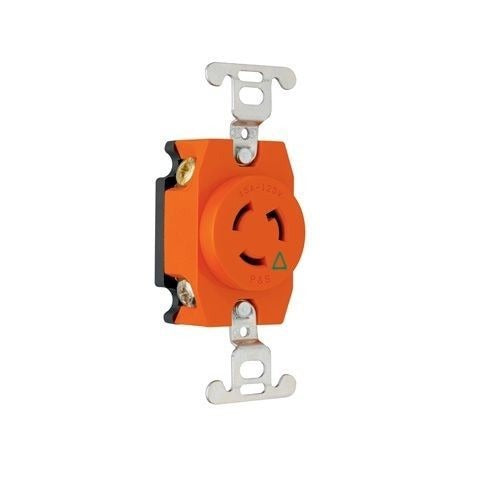

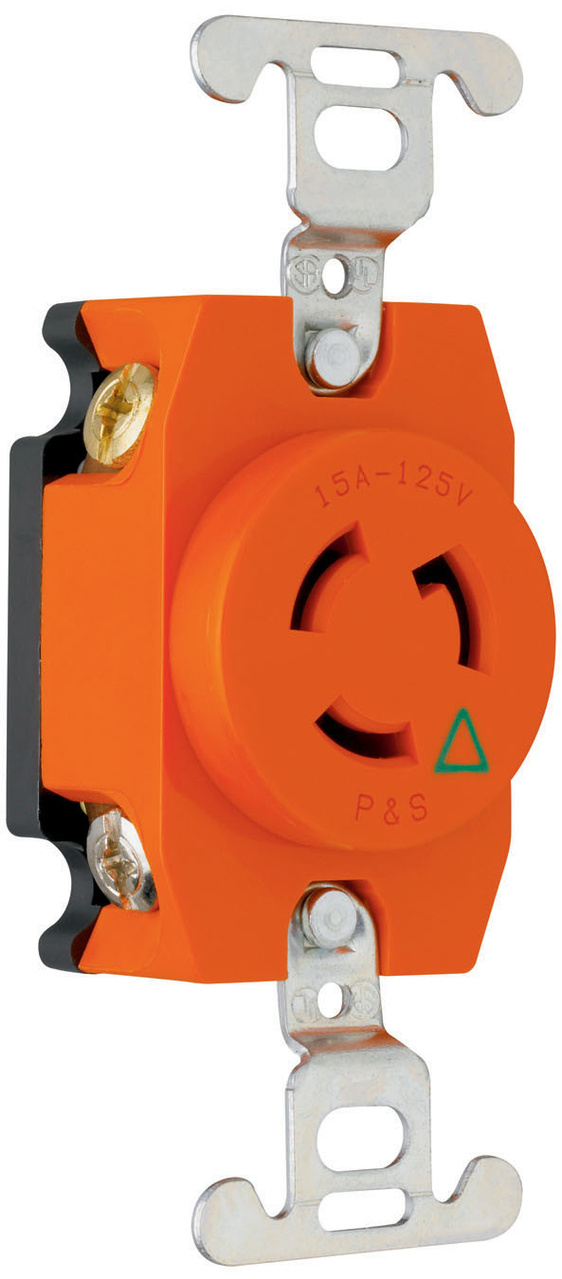

Pass & Seymour IG4710 is a Turnlok locking receptacle with isolated ground, rated 15 A at 125 V (NEMA L5-15R). The device has an ultrasonically welded nylon face and body, one-piece high-grade brass contacts, and a single-piece solid brass mounting strap. It supports side and external screw-pressure-plate back wiring, accepts 18–10 AWG conductors (back-wire accepts #14–#10 AWG), and is intended for commercial three-phase applications.

  • NEMA L5-15R locking receptacle rated 15 A, 125 V with isolated ground identification
  • Ultrasonically welded nylon face and body, one-piece brass contacts, and solid brass mounting strap
  • Side and external screw-pressure-plate back-wire capability; accepts 18–10 AWG (back-wire accepts #14–#10 AWG)

Product Highlights

Turnlok locking receptacle with isolated ground, NEMA L5-15R, back-wire capable

Product Information

Standard Information

  • Brand: PASS & SEYMOUR
  • Manufacturer Part Number: IG4710
  • Country of Origin: Mexico
Technical Specifications
Brand
Pass & Seymour
Manufacturer Part Number
IG4710
Series
Turnlok
Model / Product Name
IG4710 Turnlok single receptacle
NEMA Rating
L5-15R
Voltage Rating
125 V
Amperage Rating
15 A
Type
Locking receptacle, isolated ground
Number of Poles
2
Number of Wires
3
Number of Contacts
3
Wire Size
18-10 AWG (accepts #14-#10 AWG for back-wiring)
Back Wiring
Side and external screw-pressure-plate back-wire capability
Termination
Screw terminals
Material
Thermoplastic (nylon face and body); brass contacts and mounting strap
Contacts
One-piece high-grade brass contacts
Mounting Type
Flush (strap mounting)
Operating Temperature
-40 to 75 °C
Grade / Application
Commercial / Industrial
Certifications
cULus Listed, UL Listed, UL 498 Listed, CSA Listed, CSA C22.2
Applicable Standard
NEMA WD-1/WD-6
Country of Origin
Mexico
UPC
785007647105
GTIN
00785007647105
