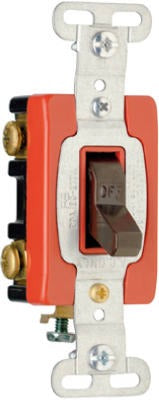

Pass Seymour CSB220CC 20A Double Pole Toggle Switch

Product Description

The PASS SEYMOUR CSB220CC is a commercial-grade double pole toggle switch rated for 20 amps at 120/277 volts. It is designed for use in commercial and specification-grade electrical installations where reliable switching performance and durability are required. The switch features high-impact-resistant thermoplastic construction and has been tested to 25,000 on/off cycles, making it a dependable choice for demanding environments. The brown finish suits standard commercial wiring applications. Licensed electricians install this switch as part of branch circuit wiring in commercial, industrial, and multi-voltage lighting or motor control applications.

This switch is suited for commercial and specification-grade projects requiring a double pole configuration to control 120-volt or 277-volt circuits from a single switching point. The grounding feature provides an added layer of safety in code-compliant installations. Termination accepts 14 through 10 AWG stranded and solid copper wire, giving installers flexibility across a range of branch circuit conductor sizes. The unit is packaged in a window box and is sold individually.

Key Features

• Rated 20A at 120/277V for commercial and specification-grade applications
• Double pole configuration controls both legs of a circuit from one switch
• Tested to 25,000 on/off cycles for long-term reliability
• Screw pressure plate back and side wire termination accepts 14 through 10 AWG stranded and solid copper wire
• High-impact-resistant thermoplastic construction
• Grounding switch in brown finish

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation double pole toggle switch for commercial branch circuit wiring at 120 or 277 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker and verify the absence of voltage with a meter before beginning any wiring work. The screw pressure plate terminals accommodate both back and side wiring entry to suit various box configurations. Do not exceed the rated conductor size or amperage for the circuit.
