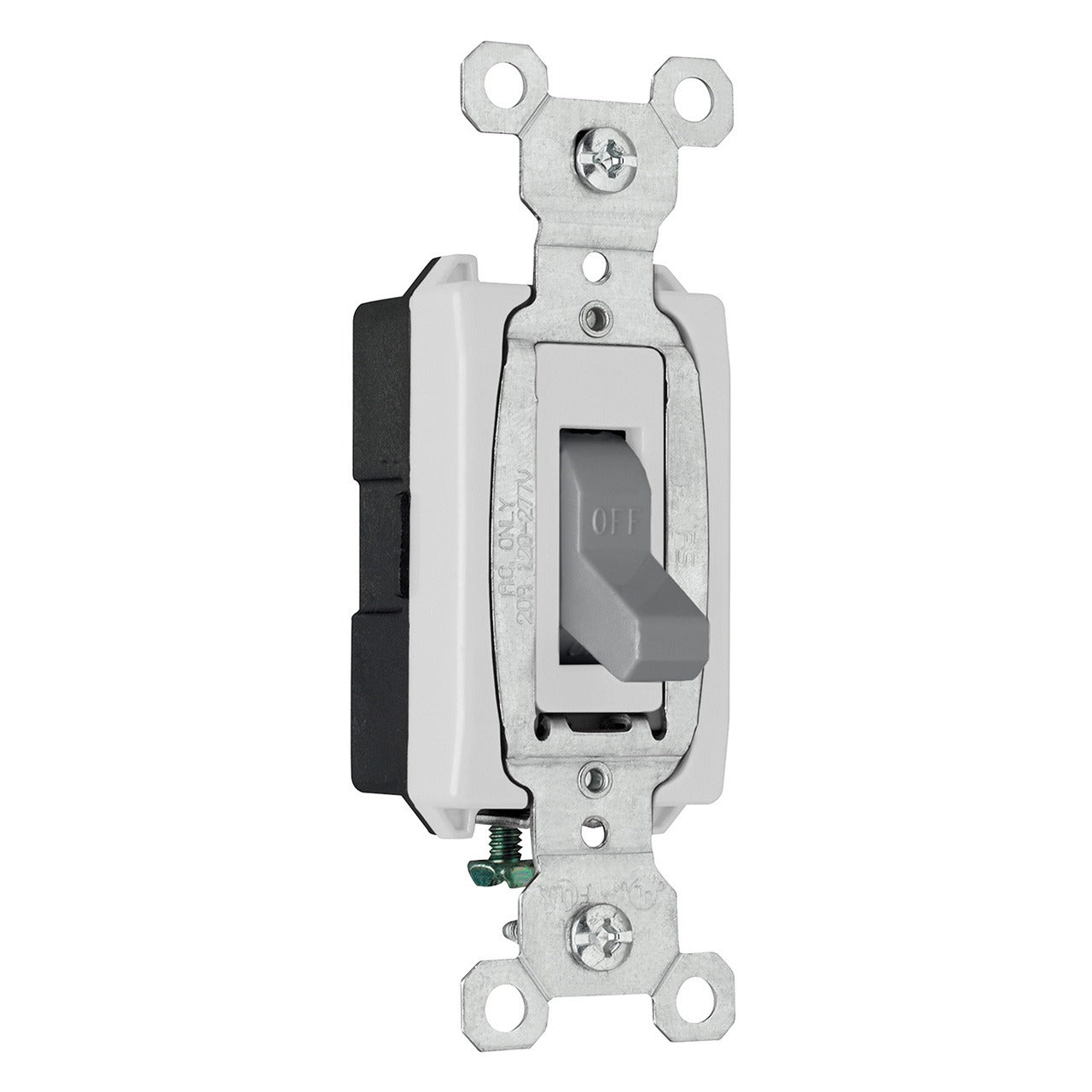

Pass & Seymour CSB20AC1-GRY Hard use specification grade switch 20A (1-Pole)

Brand: PASS & SEYMOUR
SKU: CSB20AC1-GRY
Availability: In Stock

Ships same day if ordered by 12 pm
$16.39
$16.39
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Pass & Seymour CSB20AC1-GRY is a construction-grade single-pole toggle switch rated 20 A at 120/277 VAC with back and side-wire connections. It accepts #14–#10 AWG copper or copper-clad conductors and mounts to a standard wall box. The switch features a thermoplastic polycarbonate toggle, one-piece brass alloy contact arm, plated steel strap with integral ground, and oversized silver-alloy contacts for extended contact life across common lighting loads.

  • Rated 20 A at 120/277 VAC with single-pole, single-throw operation and back/side wiring
  • Accepts #14–#10 AWG copper or copper-clad wire; screw and external screw-pressure-plate terminals
  • Thermoplastic/polycarbonate toggle, one-piece brass contact arm, plated steel strap, oversized silver-alloy contacts

Product Highlights

20 A 120/277 VAC single-pole toggle switch with back and side wiring, accepts 14–10 AWG, thermoplastic construction and oversized silver-alloy contacts

Product Information

Standard Information

  • Brand: PASS & SEYMOUR
  • Manufacturer Part Number: CSB20AC1-GRY
  • Country of Origin: Mexico
Technical Specifications
Brand
Pass & Seymour
Manufacturer Part Number
CSB20AC1-GRY
Product Type
Wall Switch
Switch Type
Toggle
Number of Poles
Single pole
Number of Switches
1
Amperage
20 A
Voltage
120/277 VAC
Load Rating
20 A @ 120/277 VAC
Horsepower Rating
1 HP @ 120 VAC, 2 HP @ 240 VAC
Wiring
Back and side wire
Wire Size
#14 AWG - #10 AWG
Connection Type
Screw terminals / external screw-pressure-plate back wiring
Mounting Type
Standard wall box
Material
Thermoplastic toggle; glass-reinforced nylon back body; plated steel strap with integral ground
Contacts
Oversized silver-alloy contacts
Contact Arm
One-piece brass alloy contact arm
Actuator
Cam control and spring actuator
Operating Temperature
-40 to 115 °C
Dimensions
3.281 x 1.32 x 1.073 inches (H x W x D)
Finish
Matte
Grade
Hard use, specification grade
Certifications
cULus Listed (Listing Number 140597); UL20; FEDSPEC; CSA C22.2 No. 111; NEMA WD-1/WD-6
RoHS Compliant
Yes
Flammability Rating
UL 94-V2
Operating Cycles
50,000
Country of Origin
Mexico
UPC
785007126068
