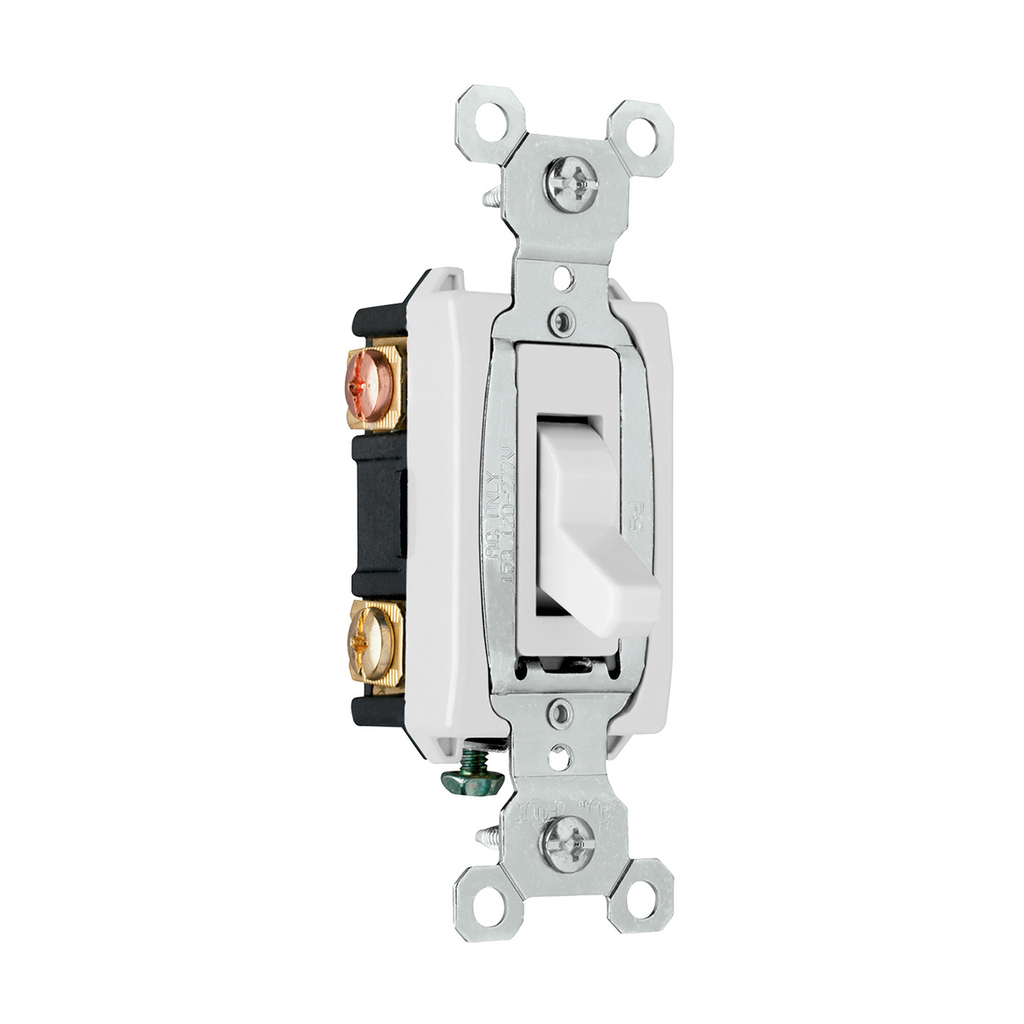

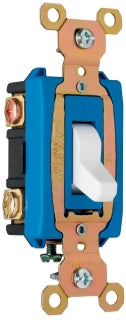

Pass & Seymour CSB15AC3W Construction 3Way Switch 15Amp 120/277Volt

Product Description

The Pass & Seymour CSB15AC3W is a construction 3-way switch designed for reliable operation. It is suitable for various applications with its back and side wire options. This switch operates at 15 amps and supports voltages of 120 and 277 volts. It is ideal for commercial settings where durability and performance are essential.

• 3-way toggle switch with reliable electrical performance.
• Compatible with #14 to #10 AWG wiring.
• Constructed from durable thermoplastic materials.

Product Highlights

This switch features a one-piece brass alloy contact arm for stable electrical connections and is plated to resist corrosion. Its glass-reinforced nylon back body enhances strength and durability.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Pass & Seymour / Legrand

Technical Specifications

• Type: 3 Way
• Amperage: 20 Amp
• Voltage: 120 Volt
• Wattage: 3 Watt
• Material: Thermoplastic
• Contact Rating: 120 V
• Depth: 1.073 Inch
• Width: 1.32 Inch
• Height: 3.281 Inch
• Duty Rating: Hard Use
• Certifications: cULus, Federal Spec Listed
• Country of Origin: Mexico
