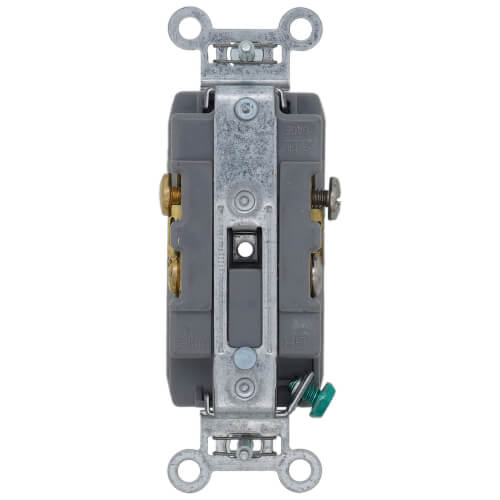

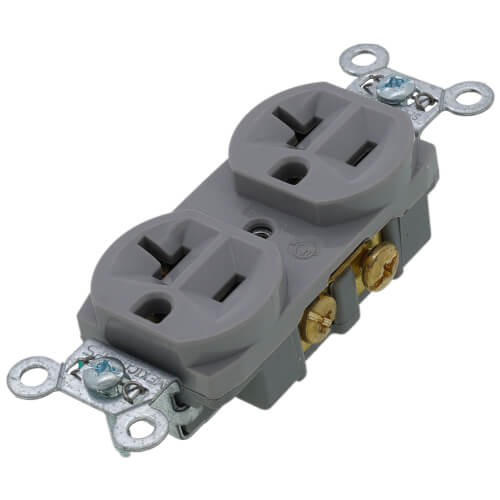

Pass & Seymour CR20GRY Receptacle BL STR 125VAC 20A 2 3 Gray

Product Description

The Pass & Seymour CR20GRY is a duplex straight blade receptacle designed for 125 VAC and 20 A applications. This receptacle features two poles and three wires, making it suitable for residential and commercial uses. The gray thermoplastic body contributes to its resilience and strength.

• Corrosion-resistant steel strap minimizes pulling away risks.
• Auto-ground clip ensures reliable grounding.
• Compatible with #14 to #10 AWG wire connections.

Product Highlights

This receptacle is built to meet the demands of both commercial and residential applications. It offers impact resistance and a user-friendly installation process due to its side wire terminals.

Product Information

Standard Information

• Brand: Pass & Seymour
• MPN: CR20GRY

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: NEMA 5-20R
• Temperature Rating: -40 to 50 °C
• Dimensions: 3.3 inches H x 1.32 inches W x 0.78 inches D
• Material: Thermoplastic
