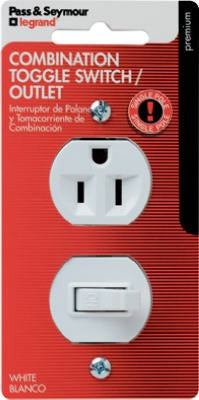

Pass Seymour 691WCCC5 Combo Switch Receptacle 15A White 5 Pack

Product Description

The PASS SEYMOUR 691WCCC5 is a combination single-pole switch and single receptacle device rated for 15 amps at 120/277 volts. Designed for commercial and residential wiring applications, it combines switching and outlet functionality in a single gang space, reducing box fill and simplifying circuit layout. The device features a NEMA 5-15R grounding receptacle outlet paired with a single-pole toggle switch. A break-off tab allows the installer to configure the device for either separate feed or common feed operation, providing flexibility across a wide range of switching and outlet circuit requirements. This package contains 5 individually carded units.

This combination device is suited for wall switch and convenience outlet applications where a single gang box location must serve dual function. Common install scenarios include residential bedrooms, commercial office spaces, and utility areas where a switched circuit and an always-hot outlet are needed at the same location. The white finish coordinates with standard decorator and traditional wallplates. Each unit ships carded for easy retail or job-site distribution.

Key Features

• Single-pole switch and NEMA 5-15R grounding receptacle in one device
• Rated 15A at 120/277V for broad circuit compatibility
• Break-off tab enables separate feed or common feed wiring configurations
• Grounding design meets standard NEC grounding requirements
• White finish for standard residential and commercial installations
• Sold as a 5-pack, carded

Compatibility

Designed as an OEM-style replacement or new-construction combination device for standard single-gang electrical boxes in residential and light commercial wiring systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit at the breaker and verify absence of voltage with a meter before making any wiring connections. The break-off tab between the switch and receptacle terminals must be removed when separate feed operation is required and left intact for common feed operation. Confirm proper grounding continuity after installation before restoring power.
