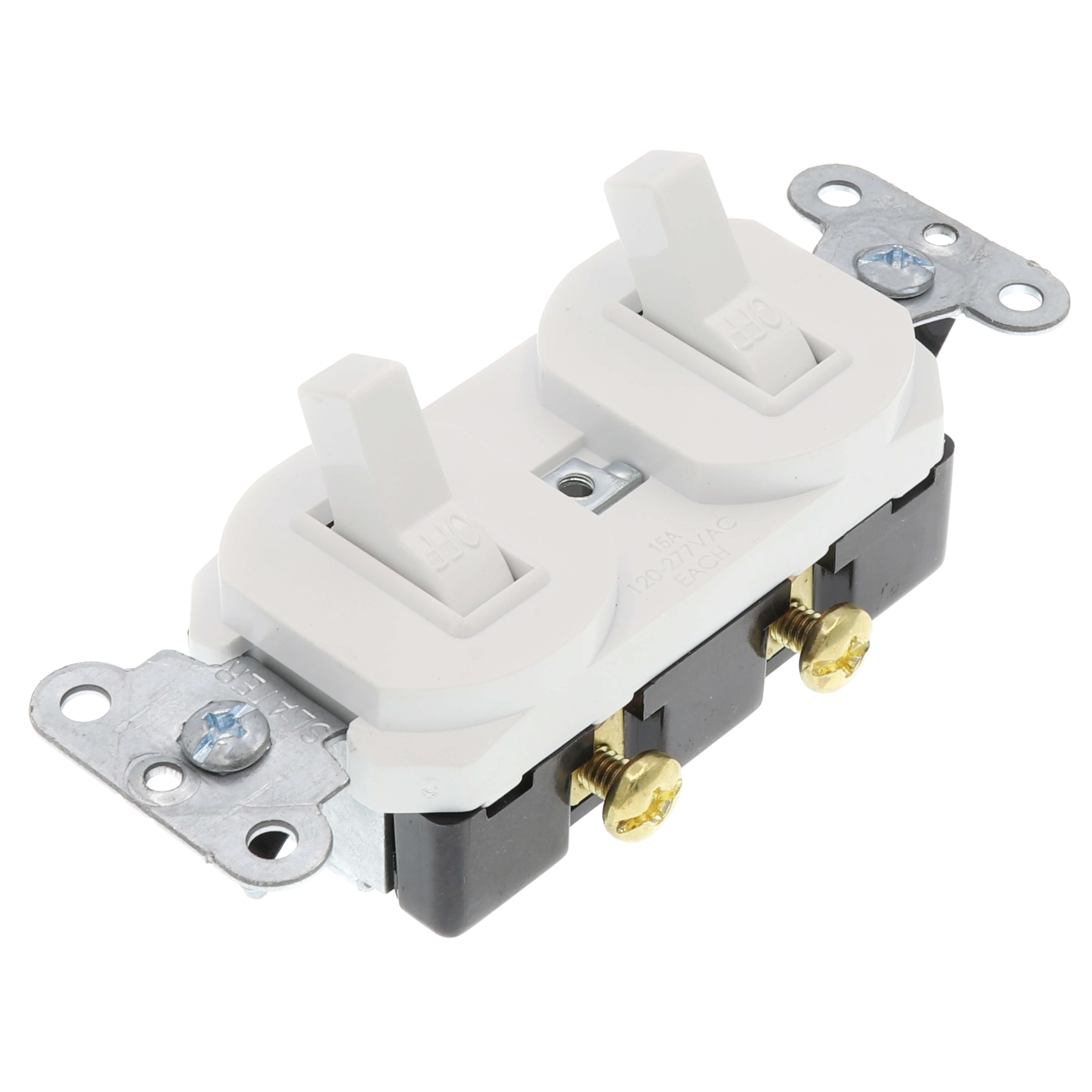

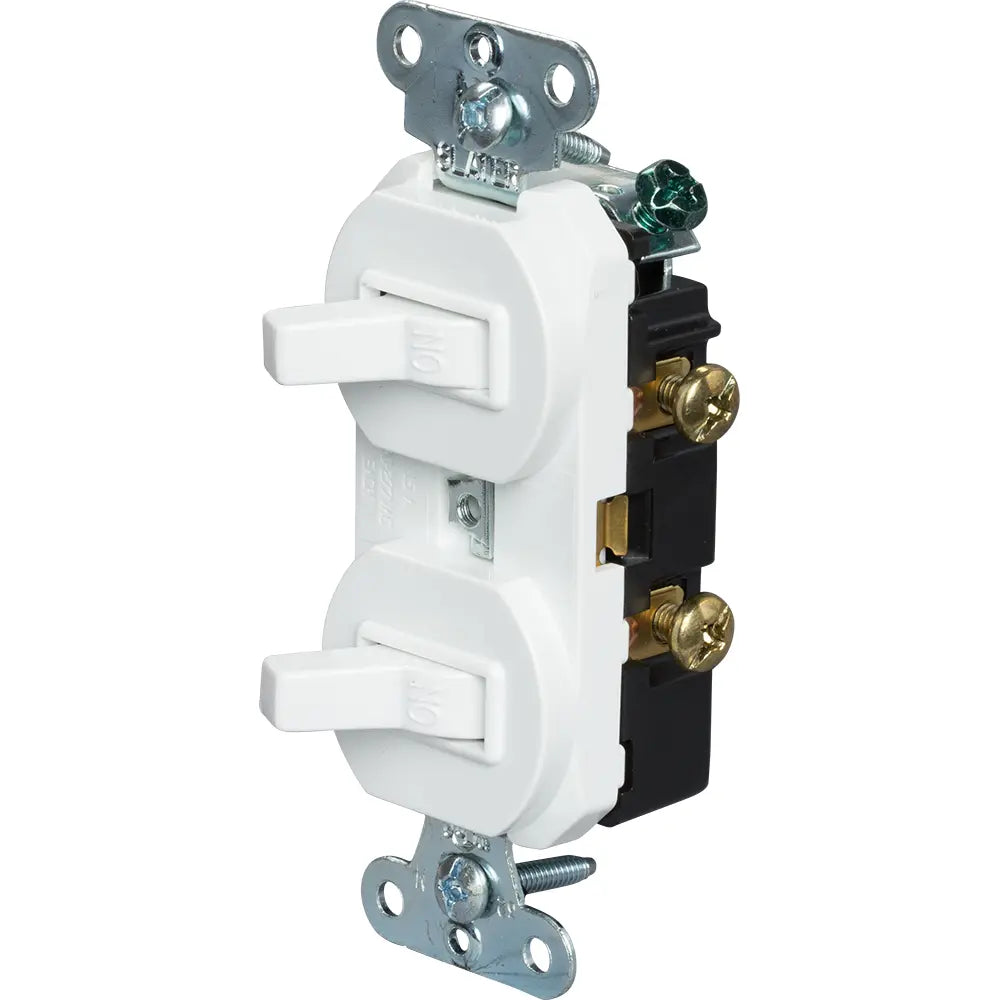

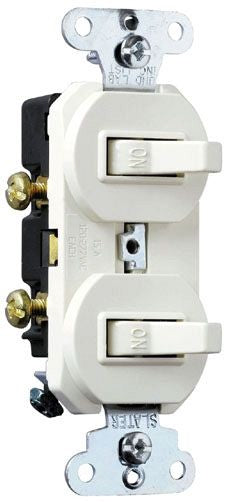

Pass & Seymour 690WG 1-Pole Combination Stack Toggle Switches Device 277 VAC 15 Amp White

Product Description

The Pass & Seymour 690WG is a combination switch designed for residential and commercial use. This device operates at 277 VAC and has a rating of 15 Amps. It is made by Pass & Seymour, a well-known brand in electrical devices.

• Easily accessible break-off separate or common feed
• Long life red neon lamp in pilot light rated 1/25 W, 125 VAC
• Grounding combination devices meet NEC requirements

Product Highlights

The combination switch allows you to easily manage lighting and other fixtures, fitting two devices in the space of one. It meets safety standards and offers easy installation options.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part No: 690WG

Technical Specifications

• Color: White
• Material: Thermoplastic
• Dimensions: 3.3 inches H x 1.32 inches W x 0.94 inches D
• Electrical Rating: 15 A, 120/277 VAC
• Number of Poles: 1
• Mounting: Wall
• Connection: Side wired terminal for 12 and 14 AWG
