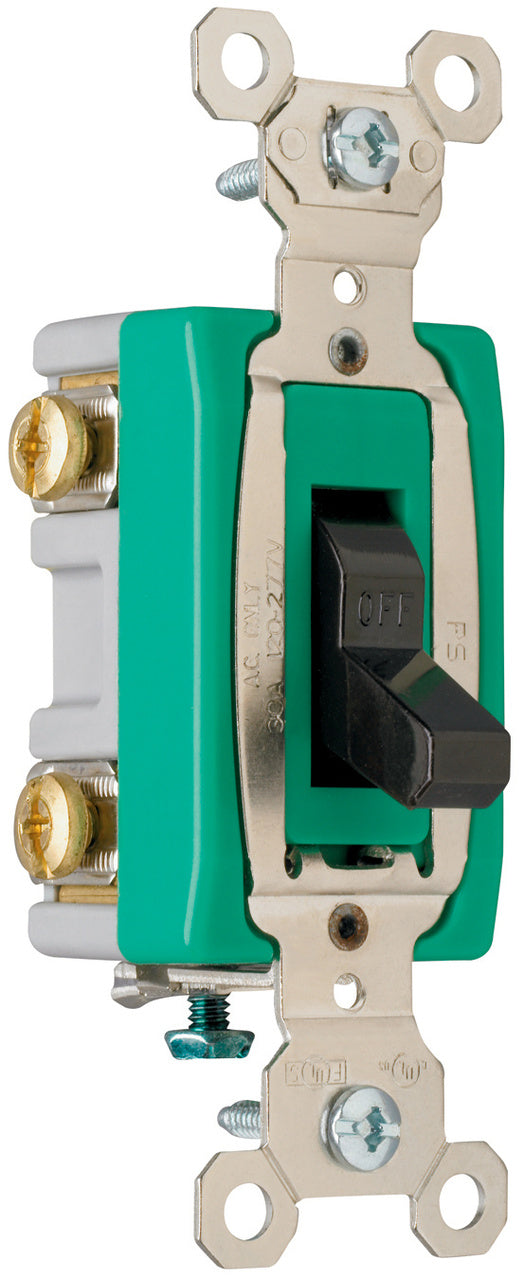

Pass & Seymour 30AC2-I 30A D.P. Spec. Grade Switch

Product Description

The Pass & Seymour 30AC2-I is a 30A D.P. Spec. Grade Switch. This industrial-grade switch features external screw-pressure-plate back and side wiring, accommodating #14 - #10 AWG copper or copper-clad conductors. Designed for commercial and industrial applications, it ensures long life and better heat dissipation with oversized silver alloy contacts.

• Accepts #14 - #10 AWG copper or copper-clad conductors
• Features a heavy-gauge one-piece copper alloy contact arm
• Cam controls fast make and positive break to minimize arcing

Product Highlights

This Pass & Seymour switch is ideal for various applications including CFL, Fluorescent, Halogen, Incandescent, LED, Universal, and Xenon.

Product Information

Standard Information

• Brand: PASS & SEYMOUR
• Manufacturer Part Number: 30AC2-I
• Country of Origin: Mexico

Technical Specifications

• Color: Ivory
• Type: Switch
• Material: Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Chemical Resistant: Yes
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Toggle
• Warranty Type: 1-Year Limited Warranty
• Standard: UL 498/20, FEDSPEC
• UPC Number: 785007195552
• Product Depth US: 1.073 in
• Product Height US: 3.281 in
• Product Width US: 1.32 in
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 30 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 30 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: Double Pole
• Horsepower Rating: 2 HP @ 120 VAC, 2 HP @ 240 VAC
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120/277 V
