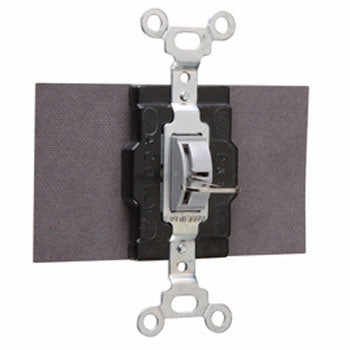

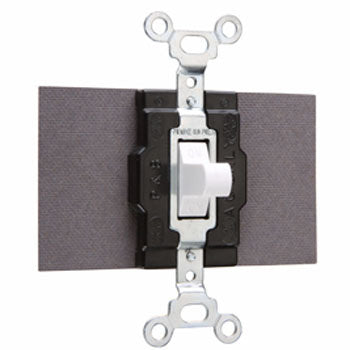

Pass & Seymour 1250 Locking Manual Controller 15A

Product Description

The Pass & Seymour 1250 Locking Manual Controller is a single-pole, double-throw switch with a 15A, 120/277VAC rating. It is also tested to 3A, 24VDC. Designed for commercial and industrial applications, this manual controller features oversized silver alloy contacts for enhanced durability and heat dissipation.

• Oversize silver alloy contacts for long life and better heat dissipation.
• Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
• Fiber terminal insulation barriers standard.

Product Highlights

This locking manual controller can be mounted in standard device boxes or NEMA 1 sheet steel enclosures. It is ideal for various applications including CFL, Fluorescent, Halogen, Incandescent, LED, Universal, and Xenon.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: 1250
• Country of Origin: Mexico

Technical Specifications

• Color: Gray
• Type: Manual Controller
• Material: Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Locking
• UPC Number: 785007125023
• Product Depth US: 1.469 in
• Product Height US: 3.281 in
• Product Width US: 1.5 in
• CSA Listed: Yes
• CSA File Number: 17949
• cULus ListingNumber: 31169
• cULus Listed: Yes
• Amperage: 15 A
• Connection Location: Side Only
• Requires Neutral Wire: Yes
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 15 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: Single Pole
• Throw Type: Double Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120/277 V
• Action: SP, DT
• Actuator: Toggle Switch
• Applications: Industrial
• Contact Configuration: SPDT
• Contact Rating: 15Amp, 120/277V
• Grade: Industrial
• Size: 3.3"
• Sub Brand: Pass & Seymour
• GTiN: 00785007125146
• Product UPC: 78500712514
• Depth: 1.469 Inch
• Height: 3.281 Inch
• Width: 1.5 in
• Certifications: CSA,UL
• Enclosure: Box or NEMA 1 sheet steel
• Brand: Legrand
• MDM Pkg GTiN: 00785007125023
• Current Type: AC
• Termination Type: Screw
• MPN: 1250-L
• Compatible Mounting Type: Box
• Contact Form: Single Pole, Double Throw (SPDT)
