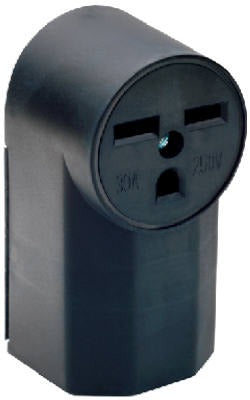

Pass Seymour 1232CC6 30A 250V Nema 6-30R Surface Receptacle

Product Description

The PASS SEYMOUR 1232CC6 is a surface mount power receptacle rated at 30 amps and 250 volts, configured to the NEMA 6-30R standard. It features a 3-wire grounding design and accepts conductors up to AWG 4, making it suitable for heavy-duty branch circuit terminations in commercial and industrial environments. The black finish and surface-mount configuration allow for direct wall or panel installation without a recessed box. Licensed electricians install this receptacle when a dedicated 30-amp, 250-volt outlet is required for equipment loads such as industrial machinery, welding units, or high-draw HVAC equipment.

This receptacle is intended for surface mount applications on branch circuits requiring a 30-amp, 250-volt NEMA 6-30R outlet. Typical installations include machine shops, manufacturing facilities, and commercial mechanical rooms where hard-wired 250-volt equipment connections are required. The bulk packaging format makes it practical for multi-outlet projects or service inventory stocking. The AWG 4 conductor capacity supports the wire gauges standard for 30-amp circuits at these voltage levels.

Key Features

• NEMA 6-30R configuration for 30-amp, 250-volt grounding circuits
• Accepts conductors up to AWG 4
• 3-wire grounding design for equipment safety and code compliance
• Surface mount installation — no recessed box required
• Black finish for easy visual identification in multi-outlet panels
• Sold in bulk pack of 6 units per package

Compatibility

Designed as an OEM-style surface mount receptacle for 30-amp, 250-volt NEMA 6-30R branch circuit applications in commercial and industrial electrical installations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with applicable NEC requirements for 30-amp, 250-volt branch circuits. De-energize and lock out the circuit at the panel before wiring the receptacle. Verify that the supply conductor gauge is appropriate for the circuit amperage and that the grounding conductor is properly terminated. Surface mount hardware should be secured to a suitable electrical box or mounting surface rated for the application.
