LEGRAND Pass & Seymour 1201 Canopy Switch 15A
LEGRAND Pass & Seymour 1201 Canopy Switch 15A
LEGRAND Pass & Seymour 1201 Canopy Switch 15A
LEGRAND Pass & Seymour 1201 Canopy Switch 15A
LEGRAND Pass & Seymour 1201 Canopy Switch 15A
LEGRAND Pass & Seymour 1201 Canopy Switch 15A

Pass & Seymour 1201 Canopy Switch 15A

LEGRAND
Brand: LEGRAND
SKU: 1201
Availability: Out Of Stock
$66.03
$66.03
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

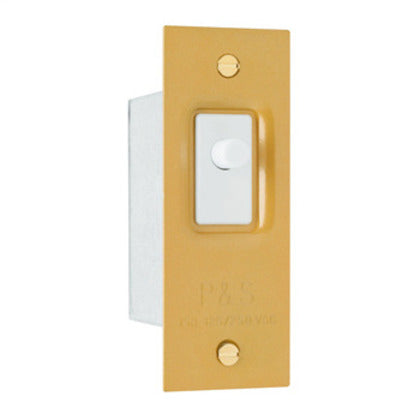

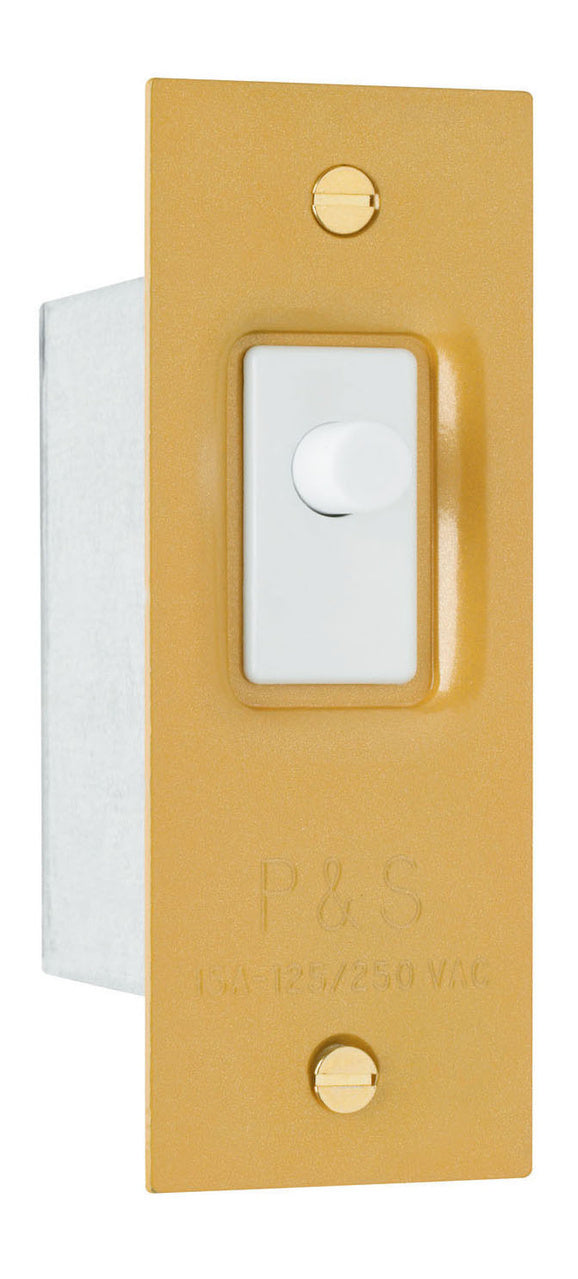

The Pass & Seymour 1201 is a pressure-sensitive door and canopy switch. This 1-pole switch is rated for 15A at 120/250 VAC and features a wire terminal connection. It is suitable for both commercial and residential applications. The switch is UL Listed and has a flammability rating of UL94 V2.

  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.

Product Highlights

The Pass & Seymour canopy switch is ideal for residential and commercial applications. It is a pressure-sensitive, single-pole switch with a wire terminal connection.

Product Information

Standard Information

  • Brand: Pass & Seymour
  • Manufacturer Part Number: 1201
  • Country of Origin: Mexico
Technical Specifications
Color
White
Type
Switch
Material
Thermoplastic
Finish
Matte
Application Sector
Commercial, Residential
Product Line
Pass & Seymour
Country Of Origin
Mexico
Pressure Sensitive Switch
Yes
Wall Plate Included
No
Number of Switches
1
Switch Type
Canopy
Standard
UL Listed
UPC Number
785007120011
Product Depth US
1.344 in
Product Height US
4.031 in
Product Width US
1.516 in
Amperage
15 A
Connection Location
Side Only
Requires Neutral Wire
Yes
Wire Connection Type
Wire Terminal
Contact Configuration
N-O
Environmental Conditions
Flammability: UL94 V2
Indoor/Outdoor
Indoor
Load Rating
15 A @ 120/250 VAC
Load Type
CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
Mounting Type
Wall Box
Number of Gangs
1
Number of Poles
Single Pole
Operating Cycles
30000
Throw Type
Single Throw
Terminal Accommodation
#14 AWG - #12 AWG
Voltage
120 VAC, 250 VAC
Amperage Rating
15 A
Contact Rating
120/250 VAC at 15 A
Temperature Rating
-30 to 60 deg C
Terminal Type
Wire Lead
Voltage Rating
120/250 VAC
Application
Residential and Commercial Applications
Brand
Legrand-Pass & Seymour
Part Number #
1201
SKU #
2222992
UNSPSC
39122211
UPC
00785007120011
Mounting
Wall
