Pasco 1452 31/2 Face Press/Temp 1/2 Mip Back Mounts

Product Description

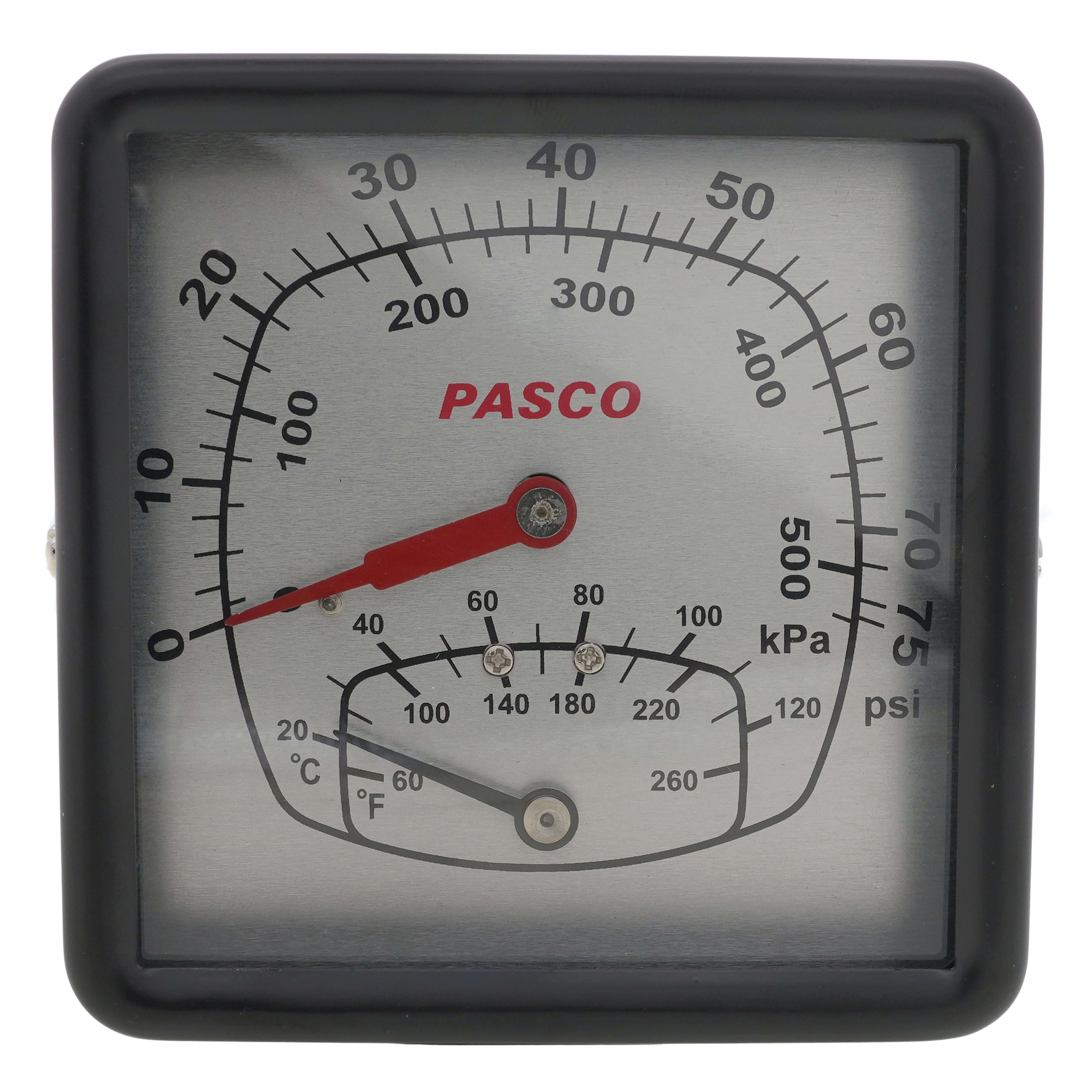

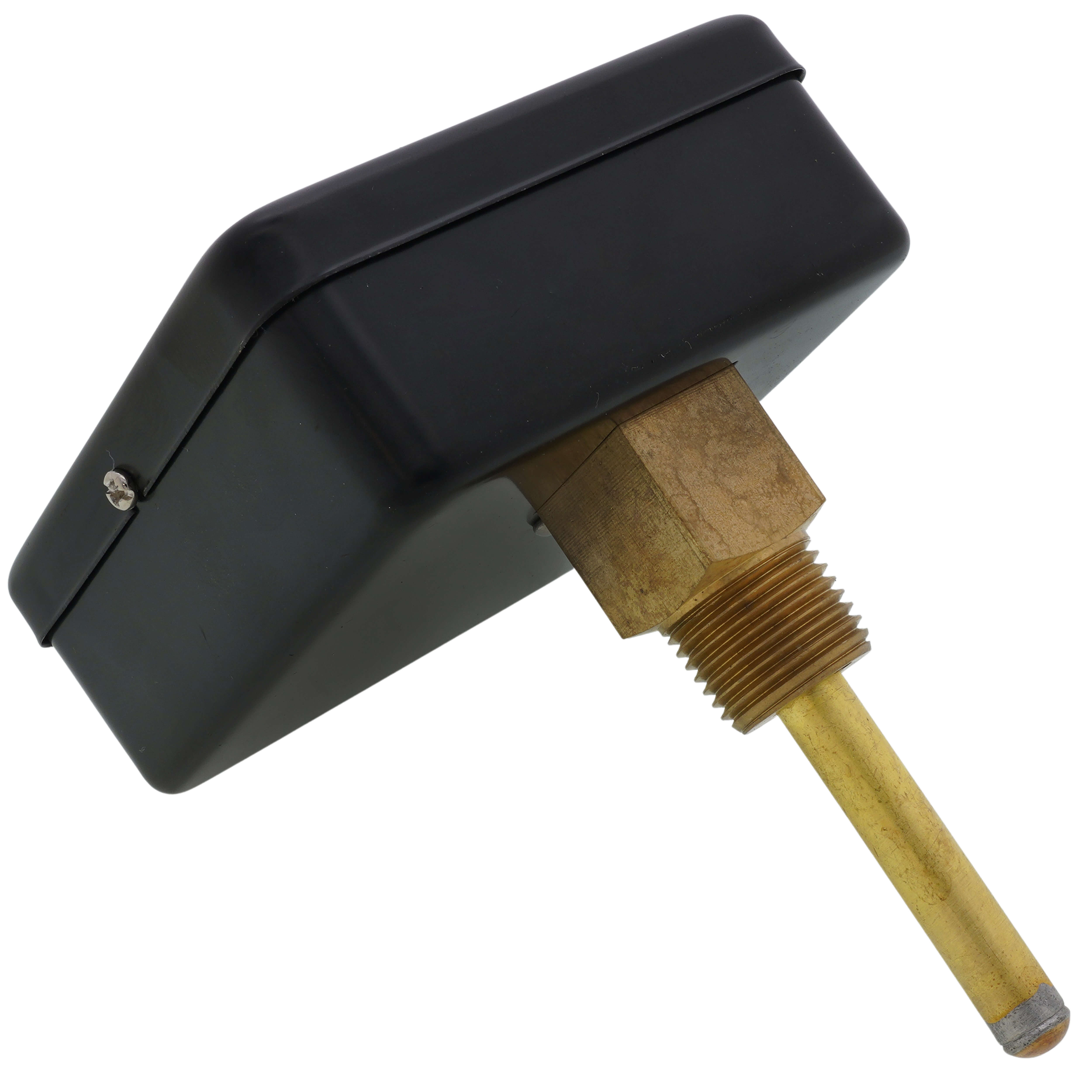

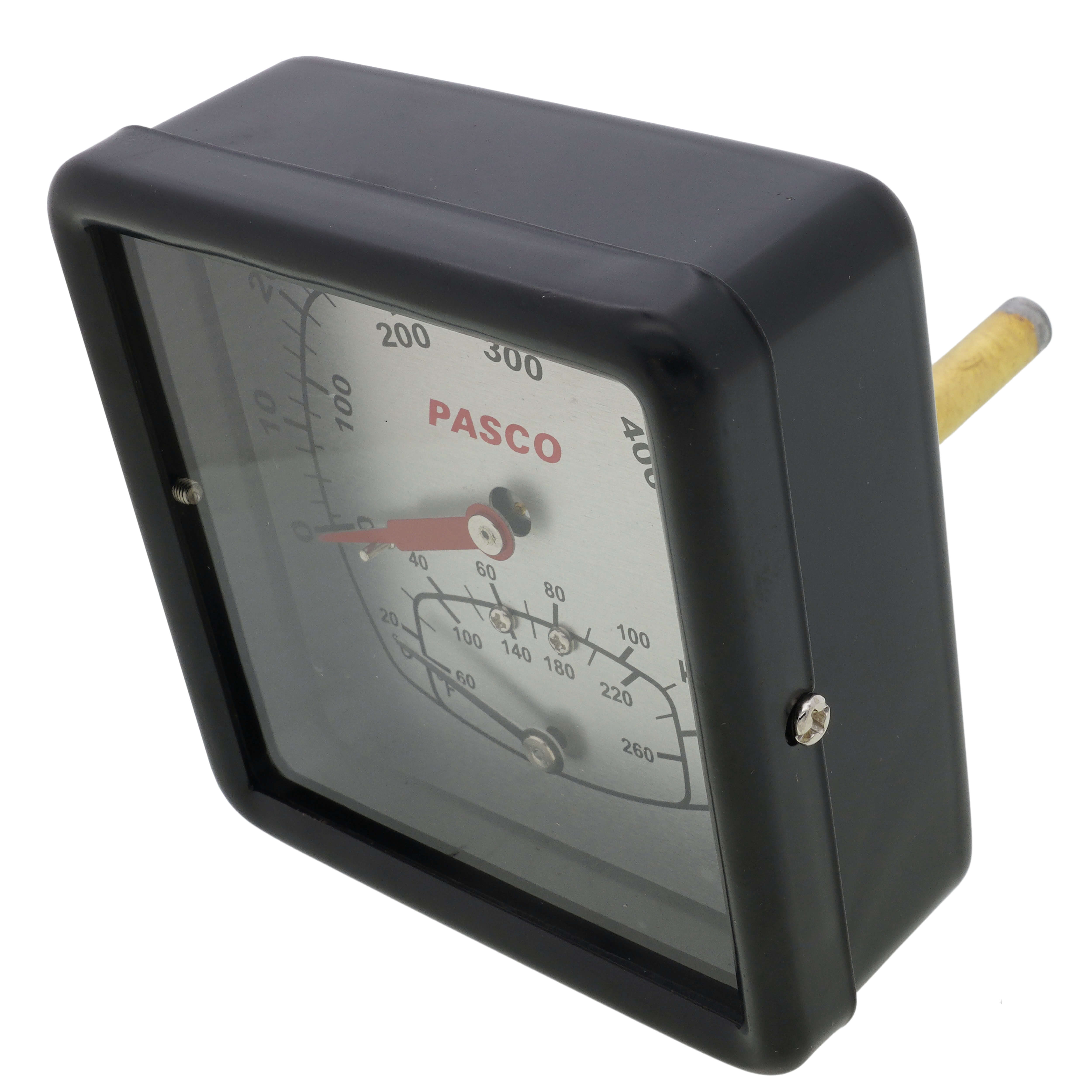

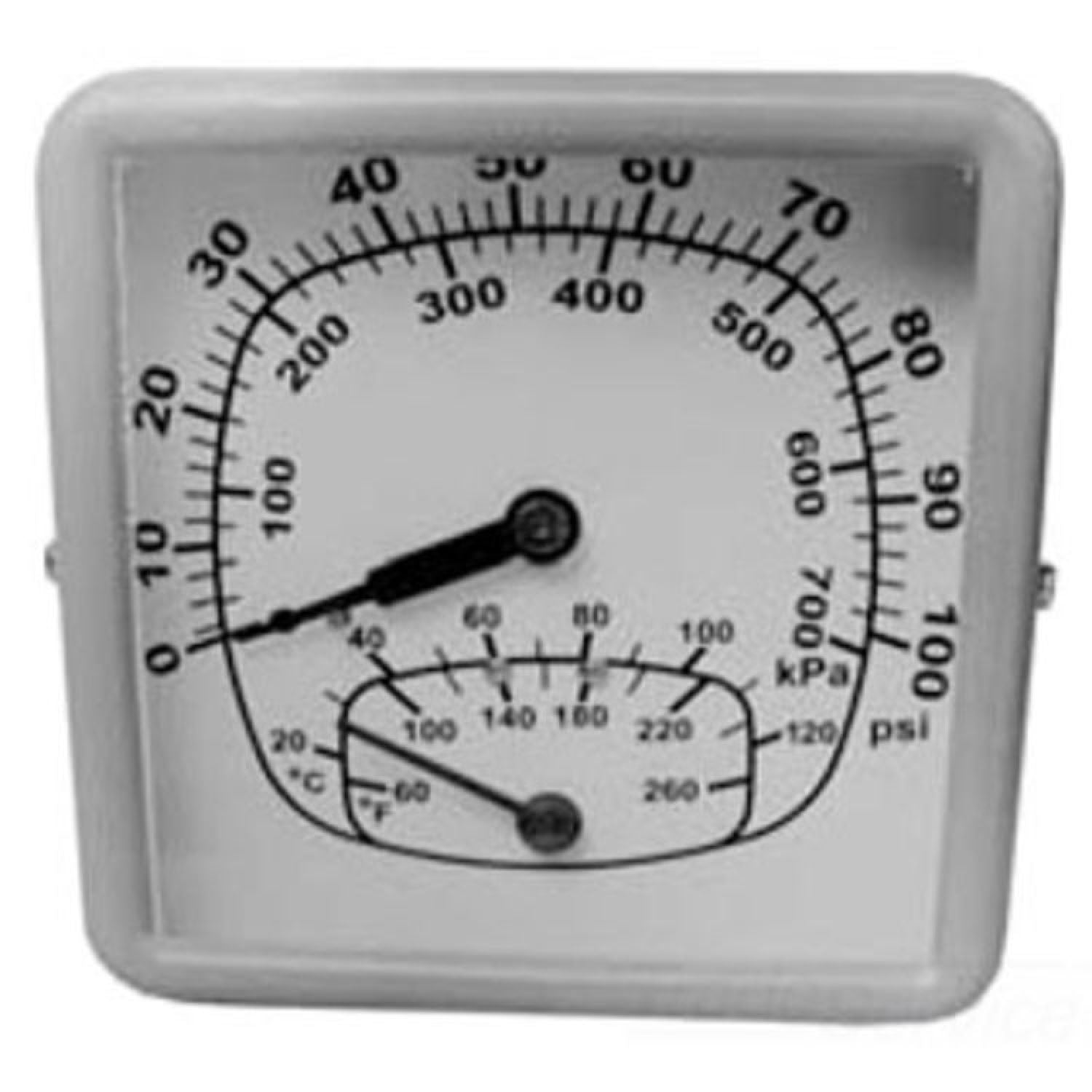

The PASCO 1452 31/2 Face Press/Temp 1/2 Mip Back Mounts is designed for use on hot water heater boilers, these combination gauges give accurate indication of temperature and pressure. The gauge is designed to withstand the conditions normally encountered on domestic heating systems. It features a steel case and glass face.

• 3-1/2" diameter face
• 1/2" MPT brass connection
• Steel case and glass face

Product Highlights

This PASCO boiler gauge accurately indicates temperature and pressure in domestic heating systems. It features a durable steel case and a clear glass face.

Product Information

Standard Information

• Brand: PASCO
• Manufacturer Part Number: 1452
• Country of Origin: United States

Technical Specifications

• Material: Glass, Steel, Brass
• Measurement System: Inch
• Type: Dry
• PSI Range: 0-75
• Connection Size: 1/2"
• Connection Type: MNPT
• Diameter (Inches): 3-1/2"
• Temperature Range (F): 60°F - 260°F
• Size: 3-1/2 in
• Pressure Rating: 75 psi
• Minimum Pressure: 0 PSI
• Dial Diameter: 3-1/2 Inch
• End Connection: 1/2 Inch MPT
• Connection Location: Rear
• Enclosure Material: Steel
• Model: 1452
• Items/Features: Dual Temperature Scale
• Element Length: 2-3/4 Inch
• Additional Information: 2-3/4 in Back-Mount, 60 to 260 deg F Temperature Rating
• Dial Size: 3-1/2 in
• Diameter: 3-1/2 in
• Measuring Range: 60 to 260 deg F, 20 to 120 deg C
• Temperature Rating: 60 to 260 deg F
• Brand: Pasco
• MPN: 1452
• Manufacturer: Pasco
