Parlec T061615P Tt Boring Insert Solid Carbide Triangle

Product Description

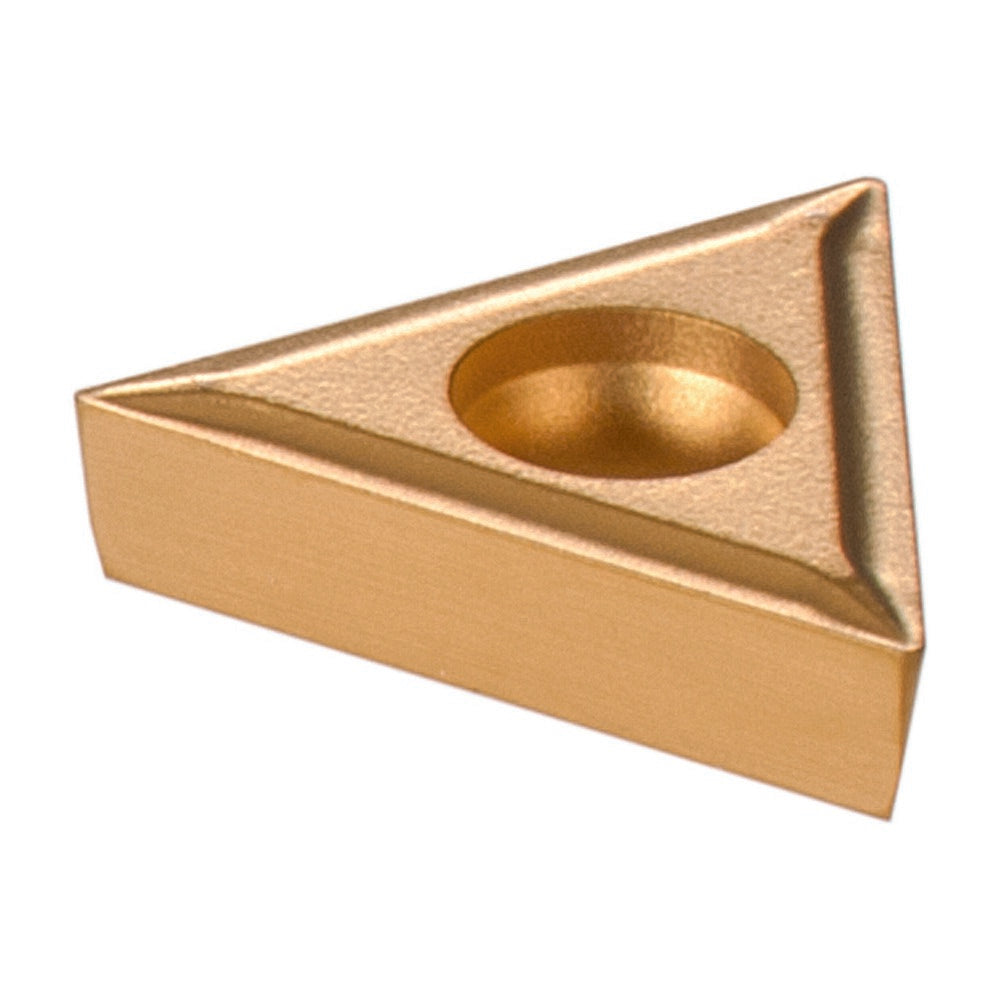

The PARLEC T061615P TT is a solid carbide boring insert designed for precision metal removal in turning and boring operations. The insert features a TCMT style with a 60-degree triangular shape and a TiN/TiC/TiN multilayer coating that resists heat buildup and extends cutting edge life at elevated feeds and speeds. It carries a 7-degree relief angle and a positive rake geometry, which reduces cutting forces and is well-suited to finishing and semi-finishing passes. A corner radius of 0.016 inches helps control surface finish while reducing edge chipping. Qualified machinists and CNC operators install this insert into compatible boring bars and toolholders as a consumable cutting tool.

This insert is intended for use on stainless steel and carbon and alloy steel workpieces, corresponding to ISO material groups M and P. The TCMT style and screw-holding method make it compatible with a wide range of commercially available TCMT-style toolholders used in CNC lathes, boring mills, and manual turning centers. The P-style chipbreaker geometry is appropriate for medium to finishing depth-of-cut conditions on these materials.

Key Features

• Solid carbide substrate with TiN/TiC/TiN multilayer coating for extended tool life on steel and stainless steel
• 60-degree triangular insert shape with three usable cutting edges
• 7-degree relief angle with positive rake for reduced cutting forces
• 0.016 inch corner radius for controlled surface finish
• Screw-mount holding method compatible with standard TCMT toolholders
• P-style chipbreaker designed for medium to light depth-of-cut applications

Compatibility

Designed for use in TCMT-style screw-clamping toolholders with a 0.156 inch inscribed circle pocket. Suitable for turning and boring operations on stainless steel and steel workpieces in ISO material groups M and P.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. The machine spindle must be brought to a complete stop and the control placed in an e-stop or locked-out state before changing inserts. Use the appropriate torx or hex key to seat the clamping screw to the toolholder manufacturer's specified method without over-torquing the insert. Inspect the pocket seat and clamping screw for debris or wear before seating a new insert.
