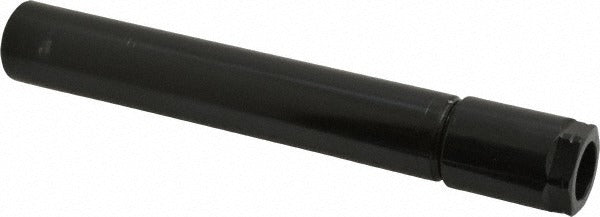

Parlec EXT100 DA100 Double Angle Collet Chuck

Product Description

The PARLEC EXT100 is a DA100 series double angle collet chuck designed for precision toolholding in CNC machining centers and manual milling applications. It accepts collets ranging from 0.0313 to 0.5625 inches in capacity and features a 1-inch straight shank for direct spindle mounting. The chuck is built with through-spindle coolant capability, directing coolant to the cutting edge for improved chip evacuation and tool life. A total indicator runout (TIR) of 0.0004 inches ensures consistent concentricity across the collet range, making it suitable for close-tolerance drilling, reaming, and end milling operations. Licensed machinists and toolroom technicians are the primary users.

This collet chuck is intended for use in production and job-shop environments where the DA100 double angle collet system is already established. It is well suited to operations requiring a secure, repeatable grip on small-diameter tooling. The 1.829-inch projection and 5.5-inch shank length position cutting tools at a controlled gauge length, reducing deflection in deep-reach setups. Applications include drilling, light milling, and reaming in ferrous and non-ferrous materials across both vertical and horizontal machining centers.

Key Features

• DA100 double angle collet system with 0.0313 to 0.5625 inch capacity range
• TIR of 0.0004 inches for consistent concentricity and close-tolerance work
• Through-spindle coolant delivery directs fluid to the cutting zone
• 1-inch straight shank for direct spindle mounting
• 1.829-inch projection and 5.5-inch shank length for controlled gauge positioning
• 1.06-inch collet nut and hex diameter for standard wrench engagement

Compatibility

Designed for use with DA100 series double angle collets in spindles accepting a 1-inch straight shank toolholder.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before mounting or removing the chuck. Ensure the shank and spindle bore are clean and free of chips or burrs before seating. Verify collet seating and torque the collet nut with the appropriate DA-series spanner wrench to manufacturer specification before running the spindle.
