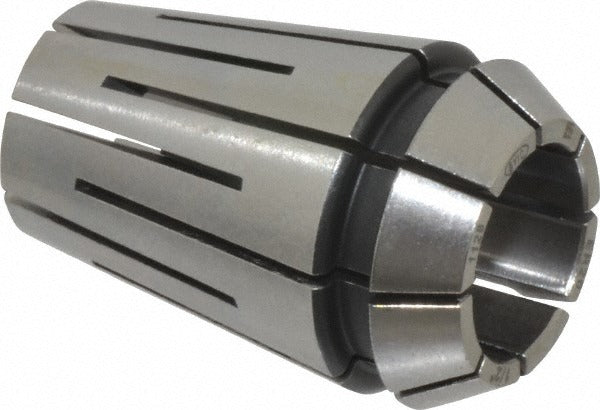

Parlec ERS20-0500 ER20 Collet 0.5 Inch

Product Description

The PARLEC ERS20-0500 is an ER20 series collet designed for use in ER20-compatible collet chucks on CNC machining centers, milling machines, and drilling equipment. It accepts a 0.5 inch (1/2 inch) round shank tool and has an overall length of 1.24 inches with an overall diameter of 0.827 inches. The collet operates at a clamping pressure rating of 1800, ensuring consistent tool grip and concentricity during cutting operations. It is typically installed by machinists and CNC setup technicians as part of a precision toolholding assembly.

This collet is suited for light to medium-duty machining applications in job shops, production facilities, and maintenance environments. The ER20 series is a widely adopted standard in precision toolholding, and this collet fits within that system to hold drills, end mills, reamers, and other 0.5 inch shank tooling. It is a single-piece component installed directly into an ER20 collet chuck body.

Key Features

• ER20 series collet accepts 0.5 inch round shank tooling
• Overall length of 1.24 inches for compact chuck assemblies
• Overall diameter of 0.827 inches for standard ER20 chuck compatibility
• 1800 clamping pressure rating for secure tool retention
• Lightweight at 0.1 pounds for easy handling during tool changes

Compatibility

Designed as an OEM-style replacement or standard component for use with ER20-compatible collet chuck bodies accepting 0.5 inch shank tooling.

Installation Notes

Installation is performed by machinists or CNC technicians. Always ensure the machine spindle is powered down and at a complete stop before changing collets. The collet should be seated properly in the collet nut before tightening onto the chuck body. Use the appropriate ER20 collet wrench and chuck wrench to torque to the chuck manufacturer specifications.
