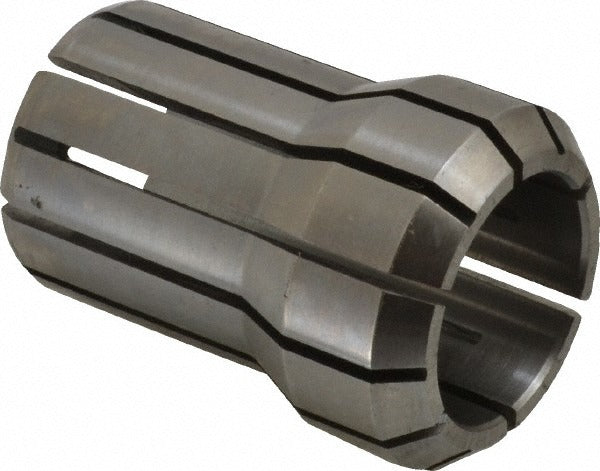

Parlec DA400-1000 Double Angle Collet 1 Inch DA400

Product Description

The PARLEC DA400-1000 is a Double Angle (DA) style collet in the DA400 series, designed to hold cutting tools and workpieces with a 1-inch bore diameter in compatible milling and machining chucks. With an overall length of 2 inches and an overall diameter of 1.455 inches, this collet delivers precise, repeatable clamping force in CNC and manual machining setups. It is installed by machinists and tooling technicians in production shops, job shops, and toolrooms where accurate tool holding is required.

The DA400-1000 is suited for use in horizontal and vertical milling machines, machining centers, and similar equipment that accept DA400-series collet chucks. Double angle collets provide a wide clamping range and strong grip, making them a common choice for high-speed cutting tool applications in both light and heavy material removal operations.

Key Features

• DA400 collet series for use with DA400-compatible chucks
• 1-inch bore diameter for direct shank tool holding
• 2-inch overall length for standard tooling reach
• 1.455-inch overall diameter for proper chuck seating
• Double angle design provides consistent clamping force and tool concentricity

Compatibility

Designed for use with DA400 series collet chucks on CNC and manual milling machines and machining centers that accept DA400-style tooling.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the spindle is fully stopped and the machine is powered down before installing or removing collets. Clean the collet, chuck bore, and nut seating surfaces before assembly to ensure proper seating and concentricity. Inspect the collet for wear or damage before each use and replace if deformation or cracking is observed.
