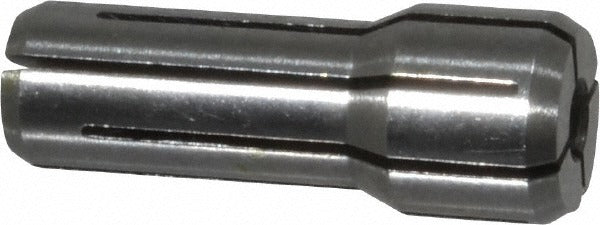

Parlec DA300-0125 Double Angle Collet DA300 1/8 in

Product Description

The PARLEC DA300-0125 is a Double Angle (DA) collet in the DA300 series, designed for use in CNC machining centers, milling machines, and router spindles that accept DA300-style collet chucks. It holds tool shanks with a nominal diameter of 1/8 inch, with a minimum collet capacity of 0.1094 inches and a maximum of 0.1250 inches. The overall length is 1.0 inch and the outer diameter is 0.3750 inches. This collet is installed by machinists and toolroom technicians to secure cutting tools, engraving bits, or small-diameter end mills during precision machining operations.

This DA300-0125 collet is suited for production and job-shop environments where consistent tool holding accuracy is required. It fits spindles and collet chucks designed for the DA300 collet series. Typical applications include light-duty milling, engraving, and routing where 1/8-inch shank tooling is common. The collet is appropriate for both manual and CNC-controlled setups requiring repeatable tool concentricity.

Key Features

• DA300 collet series with 0.3750-inch outer diameter for precise chuck seating
• Nominal 1/8-inch capacity with a working range of 0.1094 to 0.1250 inches
• 1.0-inch overall length for compact tool projection
• Double angle collet design provides secure clamping force across the tool shank
• Weighs 1 pound - solid construction for stable, vibration-resistant tool holding

Compatibility

Designed as a direct-fit replacement for DA300-series collet chucks accepting 1/8-inch shank tooling.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the spindle before inserting or removing any collet. Inspect the collet bore and chuck taper for chips, burrs, or wear before seating. Do not exceed the stated maximum collet capacity, as overloading the collet bore can cause runout or tool slippage.
