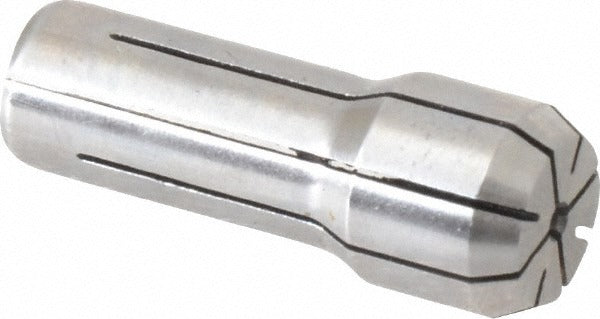

Parlec DA300-0046 Double Angle Collet DA300 3/64 in

Product Description

The PARLEC DA300-0046 is a double angle collet in the DA300 series, designed for use in CNC machining centers, milling machines, and other rotating spindle equipment that accept the DA300 collet system. This collet grips tooling with a nominal capacity of 3/64 inch (0.0469 inch maximum, 0.0312 inch minimum) and measures 1 inch overall length with an overall diameter of 0.375 inch. It provides secure, concentric tool holding for small-diameter cutting tools and is installed by machinists and tool-room technicians in production and job-shop environments.

This collet is suited for light-duty milling, drilling, and routing applications where small-diameter end mills, drills, or similar tooling must be held with precision. The DA300 series is a widely used double angle collet format found in compatible collet chucks on manual and CNC machine tools. It is appropriate for both production runs and maintenance tooling setups requiring consistent grip at small diameters.

Key Features

• DA300 double angle collet series for compatible collet chucks
• Nominal size 3/64 inch with a capacity range of 0.0312 to 0.0469 inch
• Overall length of 1 inch for standard DA300 chuck depth
• Overall diameter of 0.375 inch
• Designed for precise, concentric tool clamping at small diameters

Compatibility

Designed for use with collet chucks that accept the DA300 double angle collet series. Confirm chuck compatibility with the DA300 collet format before installation.

Installation Notes

Installation is performed by machinists or tool-room technicians. Power down and de-energize the machine spindle completely before changing collets. Ensure the collet, chuck bore, and clamping nut are clean and free of chips or debris before seating the collet. Do not overtighten the collet nut beyond the chuck manufacturer's specified procedure.
