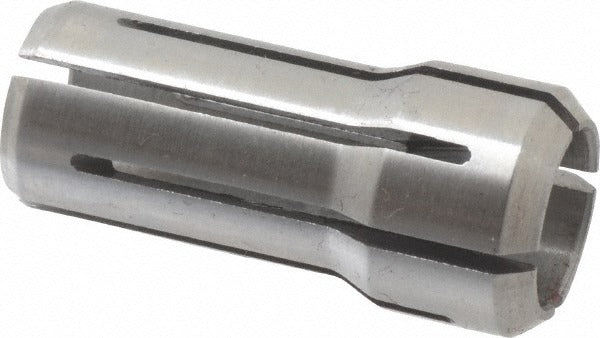

Parlec DA200-9.5MM Double Angle Collet 9.5mm 0.374in

Product Description

The PARLEC DA200-9.5MM is a double angle collet in the DA200 series, designed for precision workholding in milling and machining operations. It accepts a 0.374-inch (9.50 mm) bore diameter and has an overall length of 1.187 inches (30.15 mm). The outer diameter measures 0.539 inches. This collet is used with DA200-style collet chucks to secure cutting tools or round-shank tooling during CNC or manual milling operations. Machinists and toolroom technicians install and service these collets as part of routine tool changes and spindle setups.

This collet is suited for light to medium milling, drilling, and reaming applications where a DA200-series collet chuck is already in use. The 9.5 mm bore size accommodates metric and near-metric shank tooling, making it a practical choice for shops running mixed imperial and metric tool inventories. It is appropriate for both production environments and job-shop settings where repeatable tool runout and consistent clamping force are required.

Key Features

• DA200 collet series for use with DA200-style collet chucks
• 9.50 mm (0.374 inch) bore diameter for metric and near-metric shank tooling
• Overall length of 1.187 inches (30.15 mm) for compact spindle projection
• Overall diameter of 0.539 inches for standard DA200 chuck compatibility
• Double angle design provides consistent clamping force across the tool shank

Compatibility

Designed as a direct-fit replacement collet for DA200-series collet chucks accepting a 9.50 mm bore size.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before changing collets, power down the spindle completely and verify the machine is in a safe, locked-out state per your facility lockout/tagout procedures. Use the appropriate collet wrench and chuck spanner for the DA200 system - do not use pipe wrenches or improvised tools that can damage collet tapers or chuck bores. Inspect the collet bore and taper surfaces for chips or wear before seating.
