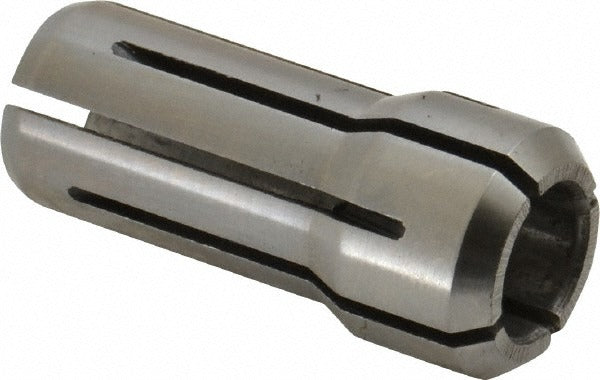

Parlec DA200-8.5MM Double Angle Collet DA200 8.5mm

Product Description

The PARLEC DA200-8.5MM is a double angle collet designed for use in DA200 series collet chucks on CNC machining centers, lathes, and manual milling machines. With a bore size of 8.5 mm (0.3346 inches) and an overall length of 1.187 inches (30.15 mm), this collet provides secure, concentric workpiece or tool clamping during high-speed cutting operations. The 0.539-inch overall diameter fits DA200 series chuck bodies. Machinists and CNC operators rely on precision collets like this one to minimize runout and maintain dimensional control across production runs.

This collet is suited for use in production machining environments where consistent, repeatable clamping force is required. It accepts round stock, end mills, drills, or other round-shank tooling at the 8.5 mm size. Typical applications include light to medium milling, drilling, and turning setups in both job shops and high-volume manufacturing. It is installed by machinists and toolroom technicians working with DA200-compatible chuck systems.

Key Features

• DA200 series collet for compatibility with DA200 chuck bodies
• 8.5 mm (0.3346 inch) bore for metric tooling and round stock
• Overall length of 1.187 inches (30.15 mm) for standard DA200 projection
• 0.539-inch overall diameter fits DA200 chuck pocket geometry
• Double angle design provides consistent clamping force and reduced runout

Compatibility

Designed as an OEM-style replacement and standard collet for use with DA200 series collet chucks. Specific chuck model compatibility should be verified against the DA200 collet series specification.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing collets. Clean the chuck body bore and collet taper surfaces before installation to remove chips, coolant residue, and debris that can cause runout. Tighten the chuck nut to the chuck manufacturer's specified torque using the appropriate spanner wrench.
