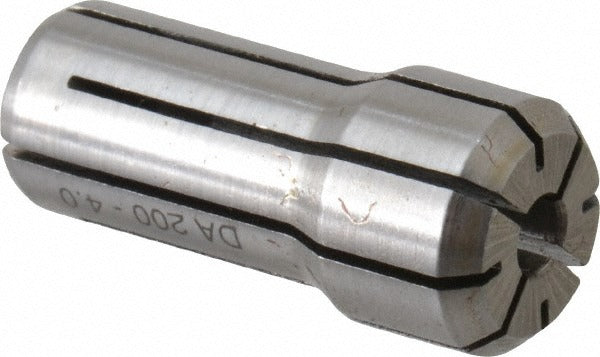

Parlec DA200-4MM Double Angle Collet DA200 0.1575 in

Product Description

The PARLEC DA200-4MM is a double angle collet in the DA200 series, designed to hold cutting tools and workpieces with precision in CNC machining and milling applications. It features a 0.1575 inch (4.00 mm) bore size and an overall length of 1.187 inches, with an overall diameter of 0.539 inches. The double angle design provides a secure, self-centering grip that minimizes runout during high-speed operations. This collet is installed by machinists and toolroom technicians as part of a DA200 collet chuck system.

The DA200-4MM is used in machining centers, CNC mills, and manual milling machines equipped with DA200-style collet chucks. It is suited for light to medium duty cutting tool holding in production and jobshop environments. The 4.00 mm bore accommodates metric shank tooling, making it a practical choice when working with metric end mills, drills, and reamers in a DA200 chuck body.

Key Features

• DA200 collet series for use with DA200-style collet chucks
• 0.1575 inch (4.00 mm) bore size for metric shank tooling
• Overall length of 1.187 inches for standard DA200 chuck depth
• Overall diameter of 0.539 inches
• Double angle design provides self-centering grip and reduced runout

Compatibility

Designed as an OEM-style replacement or standard tooling component for DA200 series collet chuck systems.

Installation Notes

Installation is performed by a machinist or toolroom technician. Before changing collets, confirm the spindle is fully stopped and the machine is in a safe, locked-out state. Inspect the collet bore and chuck taper for debris or damage before seating the collet. Do not exceed the chuck manufacturer's recommended clamping torque for the collet nut.
