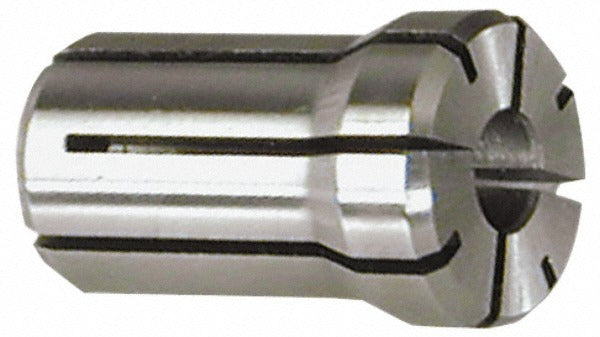

Parlec DA200-3.5MM Double Angle Collet DA200 3.5mm

Product Description

The PARLEC DA200-3.5MM is a Double Angle Collet in the DA200 series, designed to securely grip cutting tools and workpieces in CNC machining centers, milling machines, and similar toolholding applications. The collet accepts a 3.5mm (0.1378 inches) bore diameter and measures 1.187 inches overall length with an overall diameter of 0.539 inches. Its double-angle design provides consistent clamping force distribution, making it a reliable choice for precision toolholding in production and job-shop environments. Installation and use are handled by machinists and toolroom technicians familiar with DA-series collet systems.

The DA200-3.5MM is suited for use in DA200-series collet chucks commonly found in vertical and horizontal machining centers. It is appropriate for both light and moderate-duty milling, drilling, and reaming operations where a 3.5mm shank diameter tool is required. The compact overall length of 1.187 inches keeps the toolholder assembly as short as possible, supporting rigidity and reducing overhang in tight-clearance setups.

Key Features

• 3.5mm (0.1378 inches) bore diameter for precise tool gripping
• Double-angle collet design distributes clamping force evenly along the tool shank
• 1.187 inches overall length supports compact toolholder assemblies
• 0.539 inches overall diameter fits standard DA200-series collet chucks
• Sold individually (quantity of one per package)

Compatibility

Designed as a direct-fit replacement or additional collet for DA200-series collet chuck systems requiring a 3.5mm bore diameter.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Before inserting or removing a collet, ensure the machine spindle is fully stopped and all power is isolated. Use the appropriate collet wrench and chuck nut designed for the DA200-series to achieve proper seating and clamping force. Never force a collet into a chuck by striking it, as this can damage the collet taper and compromise toolholding accuracy.
