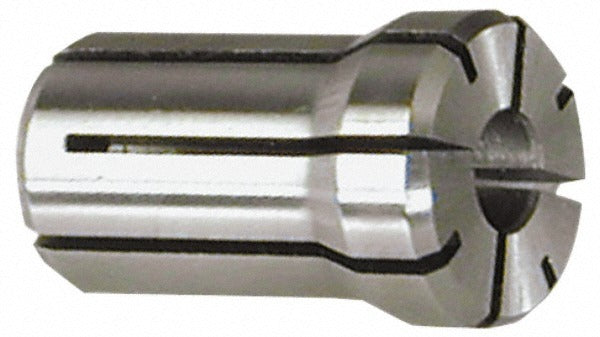

Parlec DA200-10MM Double Angle Collet 10mm 0.3937 in

Product Description

The PARLEC DA200-10MM is a double angle collet in the DA200 series, designed to hold cutting tools and workpieces with consistent radial accuracy in milling and drilling applications. With a bore size of 10mm (0.3937 inches) and an overall diameter of 0.5390 inches, this collet seats into compatible DA200-style collet chucks and tool holders. The overall length of 1.187 inches (30.15mm) keeps the collet compact within the holder. Licensed machinists, CNC operators, and toolroom technicians rely on this collet type for dependable tool clamping during high-speed material removal.

The DA200-10MM fits standard DA200 collet chuck systems used in vertical and horizontal machining centers, knee mills, and drill-tap machines. It is suited for production and job-shop environments where repeatable tool runout control is required. The double angle design provides even clamping force distribution across the collet bore, making it a common choice for end mills, drill bits, and other straight-shank cutting tools in the 10mm shank range.

Key Features

• 10mm (0.3937 inch) bore accommodates straight-shank tooling in that size
• DA200 series collet - compatible with DA200-style chuck systems
• Overall length of 1.187 inches (30.15mm) for compact seating in the holder
• Overall diameter of 0.5390 inches for proper chuck fit
• Double angle design distributes clamping force evenly for reduced tool runout

Compatibility

Designed as an OEM-style replacement and standard tooling component for DA200-series collet chuck holders used in milling and drilling machine tool setups.

Installation Notes

Installation and tool changes should be performed by a qualified machinist or CNC toolroom technician with the machine powered down and the spindle fully stopped. Inspect the collet bore and chuck taper for chips, burrs, or wear before seating the collet. Use the appropriate collet nut and spanner wrench for the DA200 chuck system - never use makeshift tools that could damage the collet or chuck threads. Follow the machine tool manufacturer torque guidelines for the collet nut as specified in the chuck documentation.
