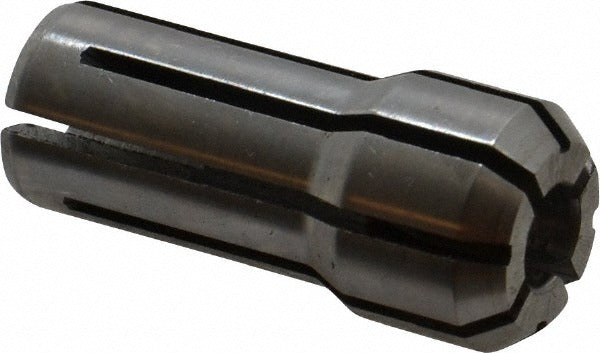

Parlec DA200-0218 Double Angle Collet DA200 7/32 Inch

Product Description

The PARLEC DA200-0218 is a Double Angle (DA) collet in the DA200 series, designed for use in DA-style collet chucks on CNC machining centers, mills, and manual machines. It accepts round shank tooling with a capacity range of 0.2031 to 0.2188 inches and has an overall length of 1.187 inches. The overall diameter measures 0.539 inches. This collet is installed by machinists and toolroom technicians who require consistent, repeatable tool holding for drilling, reaming, and light milling operations at the 7/32-inch nominal size.

This collet fits applications in general machining, production manufacturing, and toolroom environments where DA200-series collet chucks are in service. It is suited for both low-volume job shop use and higher-volume production setups requiring accurate concentricity and reliable grip on straight-shank cutting tools. The DA200 series is a widely used double-angle collet standard found in horizontal and vertical machining centers as well as manual knee mills.

Key Features

• DA200 series double-angle collet design for secure, concentric tool holding
• Nominal size 7/32 inch with a capacity range of 0.2031 to 0.2188 inches
• Overall length of 1.187 inches for consistent projection in DA200 chucks
• Overall diameter of 0.539 inches
• Compact, precision-ground construction suited for drilling, reaming, and light milling

Compatibility

Designed as an OEM-style replacement or standard collet for use in DA200-series double-angle collet chucks in CNC and manual machining applications.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the spindle drive before installing or removing collets. Ensure the collet chuck bore and collet taper are clean and free of chips or coolant residue before seating the collet. Use the appropriate spanner wrench or chuck wrench specified for the DA200 chuck to achieve proper clamping force - do not use pipe wrenches or improvised tools on the chuck nut.
