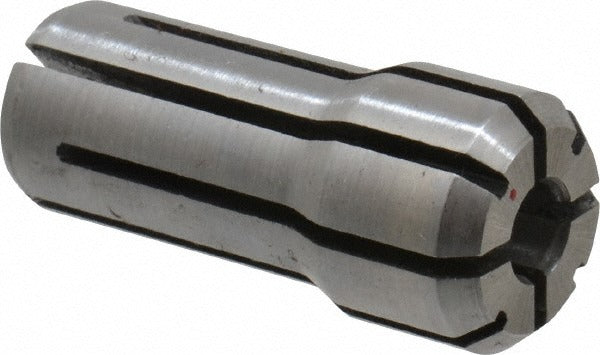

Parlec DA200-0187 Double Angle Collet DA200 3/16 in

Product Description

The PARLEC DA200-0187 is a Double Angle collet in the DA200 series, designed to hold cutting tools and workpieces securely in compatible collet chucks on CNC machining centers, mills, and general-purpose machine tool setups. It accepts tooling with a nominal shank size of 3/16 inch (0.1875 inch), with a minimum collet capacity of 0.1719 inch and a maximum of 0.1875 inch. The overall length is 1.187 inches and the overall diameter is 0.539 inches. This collet is installed and serviced by machinists and CNC setup technicians in production and job-shop environments.

The DA200-0187 is suited for light-to-medium material removal applications where consistent tool runout and secure clamping are required. It fits DA200-series collet chucks and is a standard choice for holding small-diameter end mills, drills, and reamers in vertical and horizontal machining centers. The compact overall dimensions make it appropriate for close-clearance tooling setups where space around the spindle is limited.

Key Features

• DA200 collet series for use with DA200-series collet chucks
• Nominal capacity of 3/16 inch (0.1875 inch) for small-diameter tooling
• Minimum collet capacity of 0.1719 inch for a controlled clamping range
• Overall length of 1.187 inches for compact spindle engagement
• Overall diameter of 0.539 inches
• Double Angle collet geometry for positive tool retention and concentricity

Compatibility

Designed as an OEM-style replacement or direct-fit collet for DA200-series collet chuck systems used in CNC milling and general machining applications.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Always power down and lock out the machine spindle before installing or removing collets. Ensure the collet bore, chuck taper, and mating surfaces are clean and free of chips or coolant residue before seating the collet. Consult the machine tool manufacturer guidelines and applicable shop safety procedures when selecting clamping torque for the collet nut.
