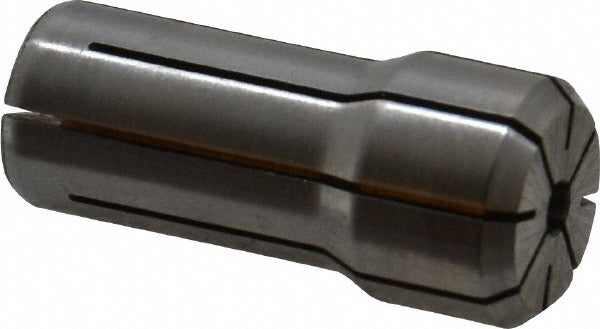

Parlec DA200-0109 Double Angle Collet DA200 7/64 Inch

Product Description

The PARLEC DA200-0109 is a double angle collet designed for use in DA200 series collet chucks on CNC machining centers and manual milling equipment. It accepts tool shanks with a clamping range of 0.0938 to 0.1094 decimal inches, making it suited for holding 7/64 inch round shank cutting tools. The collet measures 1.187 inches in overall length and 0.539 inches in overall diameter. Double angle collets provide consistent gripping force and accurate tool runout control, which is critical for drilling, reaming, and light milling operations. Machinists and toolroom technicians select this collet type when working with small-diameter tooling in production or job shop environments.

This collet fits DA200 series collet chucks and is used in both vertical and horizontal milling machine setups. It is appropriate for light-duty cutting operations where precise tool concentricity and repeatable tool changes are required. The 7/64 inch capacity makes it a practical choice for small-diameter drills, end mills, and reamers commonly used in precision machining and tooling applications.

Key Features

• DA200 collet series for compatibility with DA200 series chucks
• Clamping range: 0.0938 to 0.1094 decimal inches
• Overall length of 1.187 inches for standard DA200 chuck depth
• Overall diameter of 0.539 inches
• Double angle design provides consistent radial gripping force and low tool runout
• Sized for 7/64 inch round shank tooling

Compatibility

Designed for use with DA200 series double angle collet chucks in CNC and manual milling machine applications requiring 7/64 inch tool shank capacity.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Before installing or removing the collet, ensure the machine spindle is fully stopped and locked out per applicable machine safety procedures. Clean the collet and chuck bore of chips and coolant before seating the collet to ensure proper contact and accurate runout. Do not exceed the collet's rated clamping capacity range when selecting tooling.
