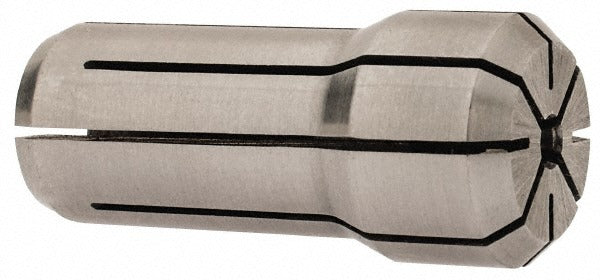

Parlec DA200-0093 Double Angle Collet DA200 3/32 in

Product Description

The PARLEC DA200-0093 is a double angle collet in the DA200 series, designed for precision workholding in CNC machining and milling applications. It accepts tool shanks with a capacity range of 0.0781 to 0.0938 decimal inches, sized for 3/32-inch tooling. The collet measures 1.187 inches overall length and 0.539 inches overall diameter. Manufactured to close tolerances, the DA200-0093 provides secure, repeatable tool clamping in compatible collet chucks. Machinists and CNC operators install this collet as part of standard tooling setups in production and job-shop environments.

This collet is suited for light-duty milling, drilling, and routing operations where small-diameter tooling is required. The DA200 series is a widely used double angle collet format found in horizontal and vertical machining centers. It is appropriate for both production shops and toolroom applications requiring consistent grip and runout control with small-shank cutting tools.

Key Features

• DA200 collet series for compatibility with DA200-style collet chucks
• Accepts 3/32-inch tooling with a capacity range of 0.0781 to 0.0938 inches
• Overall length of 1.187 inches for consistent tool projection
• Overall diameter of 0.539 inches
• Double angle design provides secure clamping and reduced runout
• Sold individually, minimum order quantity of one

Compatibility

Designed as an OEM-style replacement or standard tooling collet for use with DA200 series collet chucks in CNC machining and milling applications.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and de-energize the machine spindle before changing collets. Use the appropriate collet nut and torque wrench rated for the collet chuck system. Inspect the collet bore and chuck taper for debris or wear before seating the collet to ensure accurate tool clamping.
