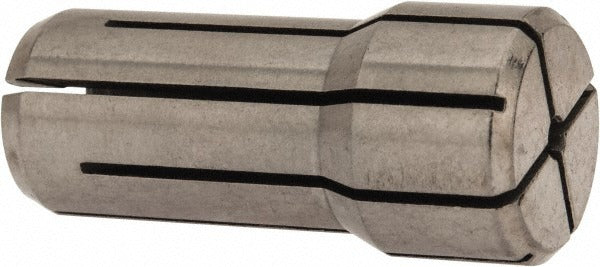

Parlec DA200-0078 Double Angle Collet DA200 5/64 in

Product Description

The PARLEC DA200-0078 is a double angle collet in the DA200 series, designed to hold cutting tools and workpieces securely in milling and drilling applications. It accepts tool shanks with a minimum capacity of 0.0625 inches and a maximum capacity of 0.0781 inches, making it suited for 5/64 inch tooling. The collet measures 1.187 inches in overall length and 0.539 inches in overall diameter. Machinists and toolroom technicians install this collet into compatible DA200 collet chucks to achieve precise, repeatable tool clamping during CNC and manual machining operations.

This collet is used in machine shop environments, tool and die operations, and production machining settings where small-diameter tooling must be held with accuracy and consistency. The DA200 series is a standard double angle collet format commonly found on vertical machining centers, knee mills, and drill presses equipped with matching DA200 collet chucks. It is appropriate for both light and moderate-duty cutting operations with end mills, drills, and similar round-shank tools.

Key Features

• DA200 series double angle collet format for secure, concentric tool clamping
• Accepts tool shanks from 0.0625 inches to 0.0781 inches capacity range
• Overall length of 1.187 inches for compact, low-profile chuck engagement
• Overall diameter of 0.539 inches fits standard DA200 collet chuck bores
• Suited for small-diameter end mills, drills, and round-shank cutting tools

Compatibility

Designed for use with DA200 series collet chucks that accept double angle collets with a 0.539 inch body diameter and 1.187 inch overall length.

Installation Notes

Installation is performed by a machinist or toolroom technician. Always power down and lock out the machine before inserting or removing collets. Inspect the collet bore and chuck taper for chips or debris before seating the collet, as contamination will affect runout and clamping force. Use the appropriate collet wrench for the DA200 chuck to achieve proper torque without over-tightening.
