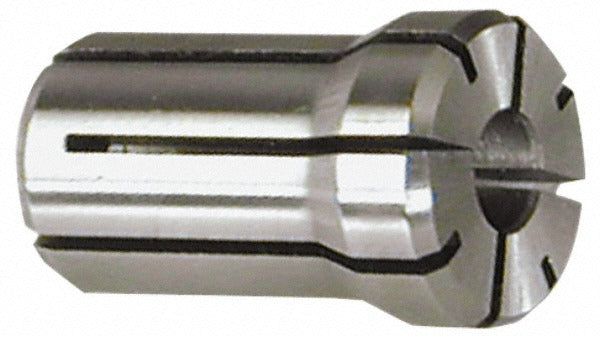

Parlec DA180-16.5MM Double Angle Collet DA180 16.5mm

Product Description

The PARLEC DA180-16.5MM is a double angle collet in the DA180 series, designed to grip cutting tools and workholding tooling in CNC machining centers and milling applications. With a 16.5 mm (0.6496 inch) bore diameter and an overall length of 1.639 inches, this collet fits DA180-style collet chucks and provides reliable clamping force for precision tool holding. It weighs 0.5 pounds and is a direct fit for setups requiring accurate, repeatable tool runout control. Machinists and CNC setup technicians install this collet as part of standard tooling changeouts.

This collet is suited for use in machining centers running DA180 collet chuck systems, covering a wide range of light to medium milling, drilling, and reaming operations. The 16.5 mm bore accommodates tooling with that shank diameter. It is typically installed in production and job-shop environments where consistent tool holding and quick changeouts are priorities. No specific compatible machine models were listed in the product data, but it is intended for any spindle or chuck system accepting DA180-series collets.

Key Features

• DA180 collet series - fits DA180-style collet chucks
• 16.5 mm (0.6496 inch) bore diameter for precise tool clamping
• 1.639 inch overall length for compact, consistent projection
• 1.025 inch overall outer diameter
• Lightweight at 0.5 pounds for fast, easy handling during tool changes

Compatibility

Designed as an OEM-style replacement and standard fitment collet for DA180-series collet chuck systems used in CNC milling and machining center applications.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. The spindle or collet chuck must be fully de-energized and the machine brought to a complete stop before changing collets. Use the appropriate collet wrench and chuck nut tool specified for the DA180 chuck to achieve proper seating and clamping force. Do not overtighten the collet nut, as this can deform the collet and reduce clamping accuracy.
