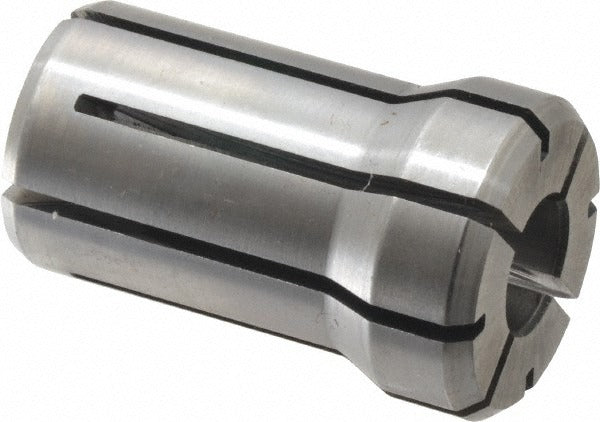

Parlec DA180-11MM Double Angle Collet 11mm

Product Description

The PARLEC DA180-11MM is a Double Angle collet in the DA180 series, designed for use in CNC milling machines and machining centers that accept DA180-style collet chucks. This collet provides a clamping bore of 0.4331 inches (11.00 mm) and an overall length of 1.639 inches (41.63 mm), making it suitable for gripping round-shank tooling such as end mills, drills, and reamers. With an overall diameter of 1.025 inches, it fits standard DA180 collet chuck bodies. Machining professionals and tool crib personnel rely on this collet for accurate, repeatable tool runout in production environments.

This collet is intended for use in metalworking and industrial machining applications where the DA180 collet system is the specified standard. It is well suited for milling, drilling, and reaming operations in both production shops and job shops. The 11 mm clamping capacity accommodates metric-shank tooling commonly used in modern CNC and manual milling setups. Installation and tool changes are handled by machinists and CNC setup technicians working with DA180-compatible collet chucks.

Key Features

• DA180 collet series for use with DA180-style collet chuck bodies
• 11.00 mm (0.4331 inch) clamping bore for metric-shank tooling
• Overall length of 1.639 inches (41.63 mm) for consistent tool projection
• Overall diameter of 1.025 inches to fit standard DA180 chuck bodies
• Double angle design provides secure clamping and reduced tool slippage under load

Compatibility

Designed as a direct-fit replacement or standard tooling component for DA180-series collet chuck systems accepting an 11 mm bore collet.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Before changing collets, power down and lock out the machine spindle following applicable OSHA lockout/tagout procedures. Inspect the collet and chuck body seating surfaces for chips or debris before seating the collet. Do not exceed the chuck manufacturer's specified torque when tightening the collet nut.
