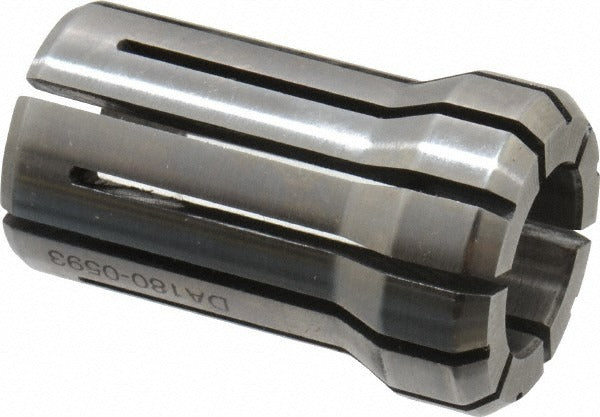

Parlec DA180-0593 Double Angle Collet DA180 19/32 in

Product Description

The PARLEC DA180-0593 is a double angle collet in the DA180 series, designed to hold round-shank tooling in double angle collet chucks used on CNC machining centers, mills, and similar rotating-spindle equipment. With a nominal size of 19/32 inches and a clamping range from 0.5781 to 0.5938 inches, this collet delivers repeatable tool grip across its working capacity. Overall length is 1.639 inches and overall diameter is 1.025 inches. It weighs 1 pound. Machinists and toolroom technicians select DA180 collets for their consistent runout performance and straightforward chuck compatibility.

This collet is suited for use in production machining and toolroom environments where a DA180-style chuck is already in service. Typical applications include end mill holding, drill holding, and general turning or milling work requiring a secure, concentric grip on shank diameters near 19/32 inches. It is installed by machinists and CNC setup technicians on standard double angle collet chuck bodies.

Key Features

• DA180 collet series for use with compatible double angle collet chucks
• Nominal size of 19/32 inches with a clamping range of 0.5781 to 0.5938 inches
• Overall length of 1.639 inches for consistent seating depth in the chuck body
• Overall diameter of 1.025 inches
• Compact, single-piece construction suitable for high-cycle production use

Compatibility

Designed as an OEM-style replacement and standard tooling component for DA180 double angle collet chucks used in CNC and manual milling and machining applications.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Always de-energize and lock out the spindle drive before changing collets. Inspect the chuck bore and collet taper for chips or burrs before seating the collet, and use the appropriate chuck wrench to torque the clamping nut - do not use impact tools on collet chuck nuts. Verify tool runout with a dial indicator after installation before resuming cutting operations.
