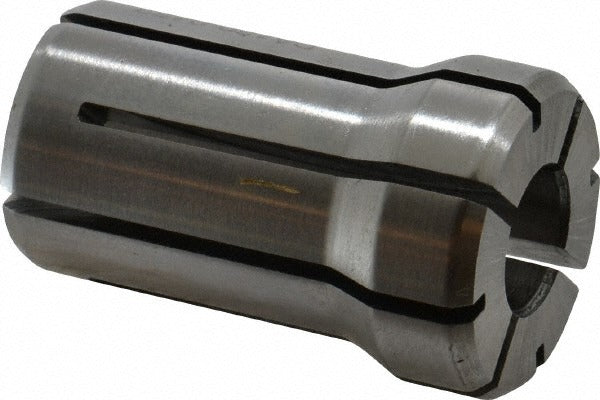

Parlec DA180-0453 Double Angle Collet DA180 29/64 in

Product Description

The PARLEC DA180-0453 is a double angle collet in the DA180 series, designed to grip and hold cutting tools or workpieces in milling and machining operations. It accepts round shanks with a maximum capacity of 0.4531 decimal inches (29/64 inch nominal) and a minimum capacity of 0.4375 decimal inches. The overall length is 1.639 inches and the overall diameter measures 1.025 inches. This collet is installed by machinists and tool room technicians in CNC and manual milling setups where repeatable tool holding accuracy is required.

The DA180-0453 is suited for use in machining centers and milling machines that accept DA180-style collet chucks. It is a common choice in production shops and job shops handling end mills, drills, and other round-shank cutting tools in the 29/64 inch size range. Its double angle design provides secure clamping force distribution across the collet body for consistent tool runout performance during metal cutting operations.

Key Features

• DA180 collet series for use in compatible DA180 collet chucks
• Nominal size of 29/64 inch with a capacity range of 0.4375 to 0.4531 inches
• Overall length of 1.639 inches and overall diameter of 1.025 inches
• Double angle design distributes clamping load for consistent grip and reduced tool runout
• Suitable for end mills, drills, and other round-shank tooling in the 29/64 inch range

Compatibility

Designed as an OEM-style replacement or direct-fit collet for milling and machining setups using DA180 series collet chucks that accept 29/64 inch nominal tooling.

Installation Notes

Installation is performed by qualified machinists or tool room personnel. Always de-energize and lock out the machine spindle before changing collets. Inspect the collet chuck bore and collet seating surfaces for debris or wear before installation. Use the appropriate collet wrench and nut torque procedure specified by the chuck manufacturer - do not overtighten, as this can distort the collet and reduce clamping accuracy.
