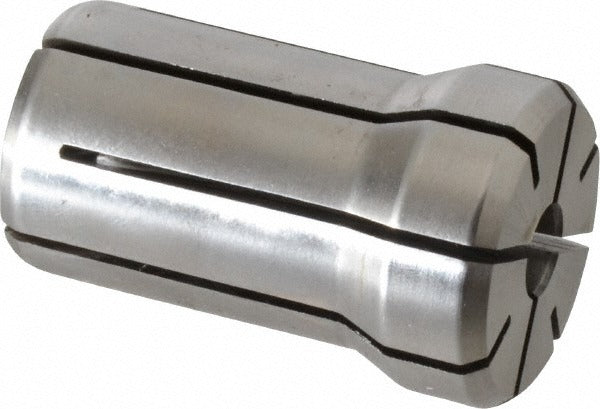

Parlec DA180-0281 Double Angle Collet DA180 9/32 in

Product Description

The PARLEC DA180-0281 is a double angle collet in the DA180 series, designed to hold round-shank tooling in double angle collet chucks used on CNC mills, machining centers, and manual milling machines. This collet accepts tool shanks from 0.2656 inches minimum to 0.2812 inches maximum, covering the 9/32-inch nominal size. The overall length is 1.639 inches and the overall diameter is 1.025 inches. Machinists and tool-room technicians install this collet when setting up milling operations that demand precise, repeatable tool grip with low runout.

Double angle collets in the DA180 series are commonly used in production and job-shop environments where quick tool changes and consistent gripping force are required. This 9/32-inch collet is suited for holding end mills, drills, and other round-shank cutting tools within its capacity range. It is installed in a compatible DA180 collet chuck body and tightened with the appropriate chuck wrench or nut.

Key Features

• DA180 collet series with 9/32-inch nominal capacity for round-shank tooling
• Minimum collet capacity of 0.2656 inches and maximum of 0.2812 inches
• Overall length of 1.639 inches for dimensional fitment in DA180 chuck bodies
• Overall diameter of 1.025 inches
• Double angle design provides secure, centered gripping and low runout

Compatibility

Designed as an OEM-style replacement or direct-fit collet for DA180 series double angle collet chuck bodies requiring a 9/32-inch capacity collet.

Installation Notes

Installation is performed by a machinist or tool-room technician. Always power down and lock out the machine spindle before changing collets. Ensure the collet, chuck bore, and tool shank are clean and free of chips or debris before seating the collet. Use the correct chuck nut and wrench rated for the DA180 series; do not overtighten or use makeshift tools.
