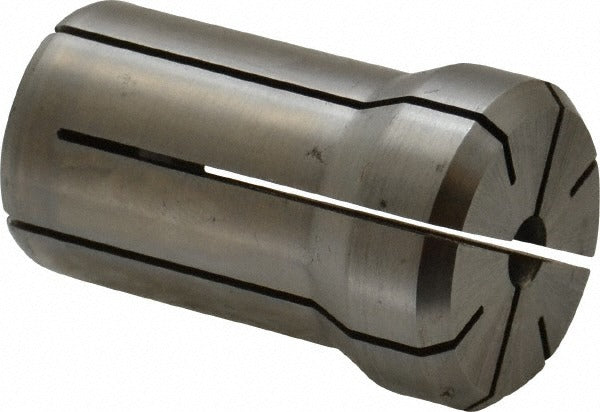

Parlec DA180-0203 Double Angle Collet DA180 13/64

Product Description

The PARLEC DA180-0203 is a double angle collet designed for use with DA180-series collet chucks in CNC machining and manual milling applications. This collet accepts round tool shanks with a nominal size of 13/64 inch (0.2031 inches decimal), providing a collet capacity range of 0.1875 to 0.2031 inches. The overall length is 1.639 inches and the overall diameter measures 1.025 inches. It is installed by machinists and toolroom technicians in production and job-shop environments where secure, repeatable tool holding is required for end mills, drills, and similar cutting tools.

This double angle collet is suited for use in vertical and horizontal machining centers, knee mills, and toolroom machines equipped with DA180-series collet chuck systems. The DA180 series is a common standard in precision tool holding for light to medium cutting operations across a range of materials. Typical applications include milling, drilling, and light reaming where tool concentricity and grip consistency are critical to part quality.

Key Features

• DA180 collet series for compatibility with DA180-series collet chucks
• Nominal size of 13/64 inch with a decimal capacity of 0.1875 to 0.2031 inches
• Overall length of 1.639 inches for standard DA180 chuck depth
• Overall diameter of 1.025 inches
• Double angle design provides secure clamping and accurate tool centerline
• Sold individually with a minimum order quantity of 1

Compatibility

Designed for use with DA180-series collet chucks. Refer to your chuck manufacturer specifications to confirm DA180 collet series fitment before installation.

Installation Notes

Collet installation should be performed by a qualified machinist or toolroom technician. Before installing or removing the collet, ensure the machine spindle is fully stopped and the machine is powered down or placed in an appropriate lockout state per your facility safety procedures. Inspect the collet bore and chuck taper for chips, debris, or wear before seating the collet. Do not exceed the collet capacity range when sizing tool shanks, as oversizing can damage the collet and reduce clamping accuracy.
