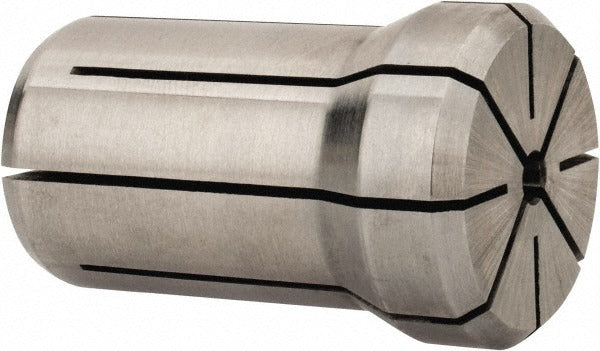

Parlec DA180-0140 Double Angle Collet DA180 9/64 in

Product Description

The PARLEC DA180-0140 is a Double Angle collet in the DA180 series, designed for precision workholding in CNC milling and drilling applications. It accepts shank diameters from 0.1250 to 0.1406 inches, making it well suited for small-diameter tooling. The collet measures 1.639 inches in overall length and 1.025 inches in overall diameter. Machining centers, milling machines, and tapping heads equipped with DA180-compatible toolholders accept this collet directly. Installation and tool changes are performed by machinists and CNC setup technicians in production and job-shop environments.

The DA180-0140 fits toolholding setups that require consistent, repeatable grip on small-diameter cutting tools, taps, drills, and reamers. Its 9/64 inch nominal size covers a common small-shank range used frequently in ferrous and non-ferrous machining operations. This collet is appropriate for both light production runs and high-cycle CNC environments where accurate tool runout matters.

Key Features

• DA180 collet series for use with compatible DA180 toolholders and chucks
• Collet capacity range of 0.1250 to 0.1406 inches covers the 9/64 inch nominal shank size
• Overall length of 1.639 inches for standard DA180 toolholder depth
• Overall diameter of 1.025 inches for consistent seating in the collet chuck bore
• Double angle design provides positive axial and radial clamping force on tool shanks

Compatibility

Designed as an OEM-style replacement or direct-fit collet for machine tool setups using DA180-series collet chucks and toolholders.

Installation Notes

This collet is installed and serviced by machinists or CNC toolroom technicians. Always power down and lock out the machine spindle before changing collets. Inspect the collet bore and chuck taper for chips or debris before seating; contamination causes runout and premature wear. Use the appropriate collet wrench and nut for the DA180 series - do not substitute non-rated tools.
