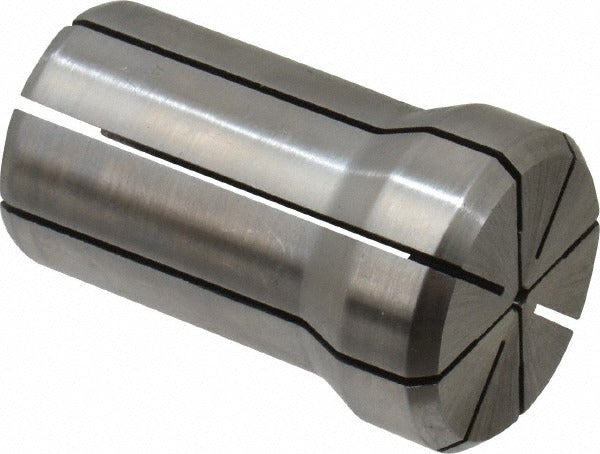

Parlec DA180-0062 Double Angle Collet DA180 1/16 in

Product Description

The PARLEC DA180-0062 is a double angle collet in the DA180 series, designed to grip and secure cutting tools or workpieces in compatible collet chucks during milling, drilling, and routing operations. With a nominal size of 1/16 inch (0.0625 decimal inch) and a collet capacity range of 0.0469 to 0.0625 inches, it is suited for small-diameter tooling applications. The overall length is 1.639 inches and the overall diameter is 1.025 inches. This collet is installed by machinists and CNC operators in production and job-shop environments where precise tool holding is required.

This collet is intended for use in machine tool setups where a DA180-series collet chuck is employed. Typical applications include light milling, engraving, and small-diameter drilling operations on CNC machining centers and manual mills. The double angle design provides positive clamping force and concentricity, making it appropriate for precision work with small-shank tooling in both production and toolroom settings.

Key Features

• DA180 collet series for use with compatible DA180-series collet chucks
• Nominal size of 1/16 inch with a decimal size of 0.0625 inches
• Collet capacity range from 0.0469 to 0.0625 inches for small-diameter tool shanks
• Overall length of 1.639 inches and overall diameter of 1.025 inches
• Double angle design promotes secure clamping and tool concentricity

Compatibility

Designed as an OEM-style replacement or standard tooling component for machine tool setups using DA180-series collet chucks.

Installation Notes

Installation is performed by qualified machinists or CNC technicians. The spindle must be powered down and the machine brought to a complete stop before changing collets. Collet chuck threads and the collet taper should be clean and free of chips or coolant residue before seating the collet. Follow machine tool manufacturer torque and clamping procedures for the specific chuck in use.
